Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
It is very inconvenient to have regenerated C files in C++ project.Problem is not main.c only, *_it.c as well. In C++ project one have to call methods of class from interrupt handlers.It is not possible to make directly from *_it.c. Indirect call cha...
Hi,I have some CubeMX-generated code which works properly. Originally it was created to run from default address 0x08000000.Now I have a bootloader at address 0x08000000 which is responsible for handling updates and other stuff and then jumps into th...

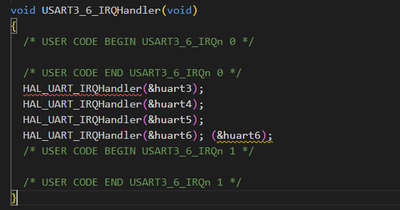

hello,now I am using stm32f030cct6 to design a simple program. i used all the 6 uarts of this chip. it works fine, but the interrupt code generated by STM32CubeMX has a simple bug. the code as below.for the uart6, there is a useless （&huart6); i thi...
Hi everyone,I am encountering an issue with the "Access to MCU Selector" feature.The Problem: After installing X-CUBE-AI packages version 10.2 (or any version later than 10.0), the MCU Selector fails to open. It gets stuck in an infinite loading loop...

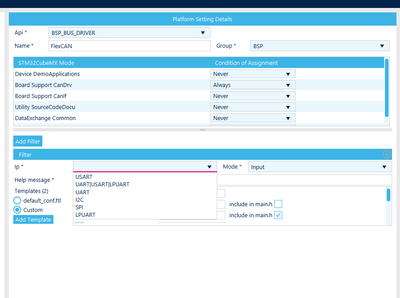

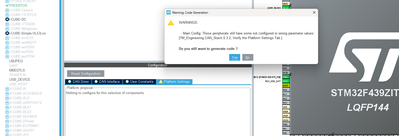

I made a support pack for better support of CAN connections.But there is no possibility to create a "Platform Setting" for CAN connections I tried to edit the "Modes.xml" manually. Than the PackCreator shows the correct IP, but STM32CubeMX doesn't ac...

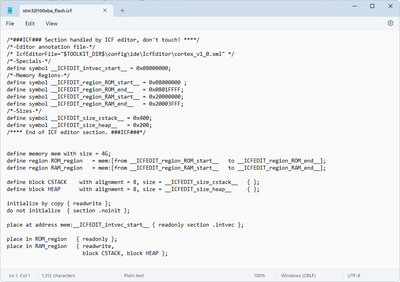

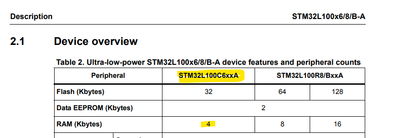

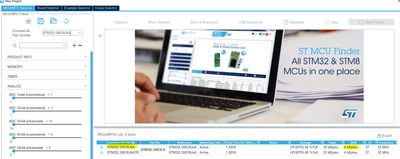

I select a new project and select the STM32L100C6U6A. STM32CubeMX says it has 4 kBytes of RAM.I generate the project for EWARM.But when I generate the project for EWARM it puts stm32l100xba_flash.icf file in the project and that files says RAM is 163...

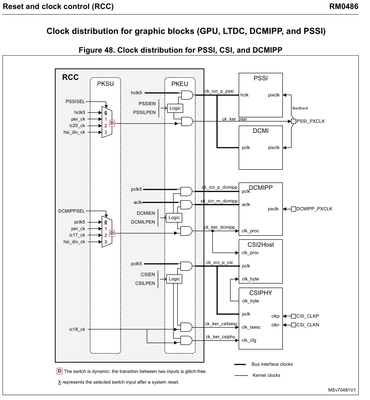

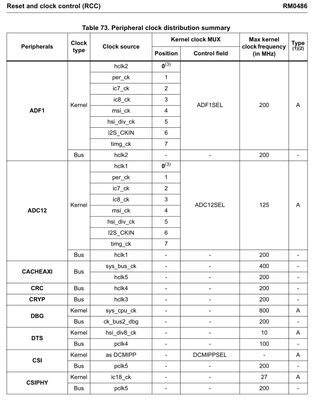

The STM32N6 reference manual shows that IC18 drives the CSI2Host and CSIPHY IP blocks at a maximum frequency of 200 MHz. CubeMX generates this clock configuration code but does not show the clock path in the clock configuration window. Additionally, ...

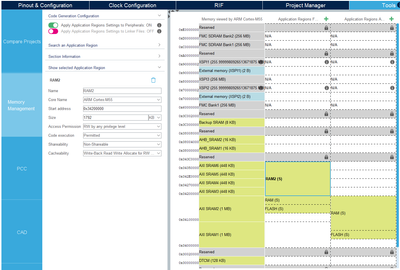

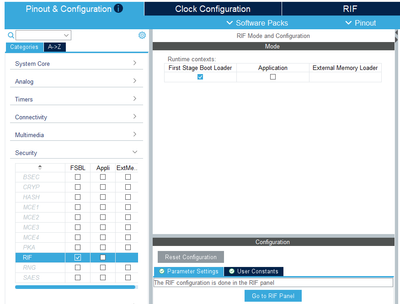

Reporting two issues when using STM32CubeMX v6.16.1 to generate STM32N6 code. I created new secure only template project for STM32N6570-DK to demonstrate the issue (it's attached).Only changes to the new project are these:In MMT defined RAM2 area ove...
I'm considering migrating from STM32F469NIH6 to STM32F769NIH6. From data sheets it is apparant that these two MCU's have compatible pinout, however the pinout compatibility tool of STM32CUBEMX V6.15.0 doesn't show these MCU's as compatible, why is th...
When using the memory management tool (MMT) on the STM32H573 to set the backup RAM as secure it generates an invalid secure attribution unit (SAU) config:#define SAU_INIT_REGION5 1 #define SAU_INIT_START5 0x40000000 /* start address of SAU region 5 *...
