Discuss STM32 solutions for motor control, including PID tuning, sensorless operation, ADC noise, custom algorithms, and more.
Dear MCSDK users, The full MCSDK documentation is embedded in the Motor Control Workbench tool. Refer to Workbench tool > About > Documentations > Documentation.This document provides: Introduction: Includes startup guide links for MCSDK, HSO featu...
Dear MCSDK users, MCSDK version 6.4.0 is now available: Download It here. This version of the new Motor Control SDK 6 series (X-CUBE-MCDSK) provides mainly FOC and 6Step improvements, here are the main changes for this version: Motor Control Features...
The documentation of the Board descriptions format is now available on Motor Control Boards Description Wiki page, this documentation is compatible with MCSDK versions from 6.1.2. Board Descriptions are used by the ST motor-control workbench to enabl...
In order to have a quick response to your forum posts, the best way to ask the question is:- Give the version of the MCSDK used. - Say if the problem concerns a tool (MC Workbench, Motor Pilot, Motor Profiler, etc...) - Provide picture of tools inter...
Hello ST Community,I am working on a BLDC motor control project and would like to use STM32 Motor Control SDK (MCSDK) Workbench to generate firmware.My Hardware ConfigurationMotor Type: BLDCMotor Voltage: 48VMCU: STM32F405RGT6IssueWhen creating a new...
I am using online STMC board-designer tool to design my custom motor board. All great and fun, but when I click save, the only option I have is to share the board which is a json file. And that is not importable into STM32CubeMX for further file gene...
HiI would like to generate a PWM signal on a pin on the board of the EVALSPIN32G0A1 EVB, but no signal is being generated. I tried doing it onthe pins of J5 (the hall conctors pins) and on the pins of J2 but no ignal is generated there. i tried check...
Hi Team, Greetings of the day.... Can we have a discussion regarding solution for Airconditioner Dual Motor Control application?Please reply.Thanks, and regards,Ajay P
Hello everyone,I am facing a flashing/debugging issue with the STEVAL-SPIN3202 Rev 3.1 board.Board:STEVAL-SPIN3202 Rev 3.1Software Used:STM32CubeIDESTM32CubeProgrammerProblem:While trying to flash or debug the board from STM32CubeIDE, I get the follo...

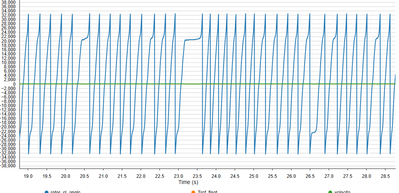

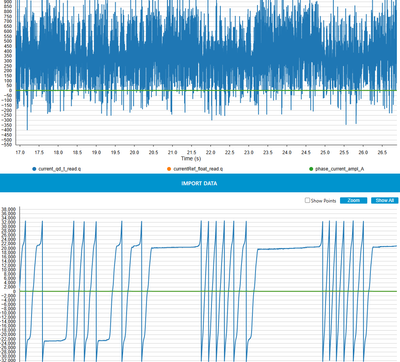

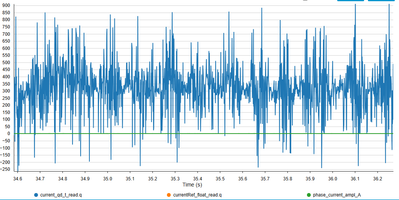

Hi,I am currently utilizing the MC Workbench (6.4.2) with an B-G431-ESC1 to drive a custom DC brushless motor. I've been able to successfully to control the motor and generate a motor profile when using the sensor-less option for speed control but wh...
Hello ST Support Team,I am working on an STM32G474RE based 3-phase VFD using HRTIM1 for SVPWM generation.Hardware/output:- Timer A/B/C used for U/V/W phases- TA1/TA2, TB1/TB2, TC1/TC2 complementary PWM- Dead-time enabled- Center-aligned PWM required-...

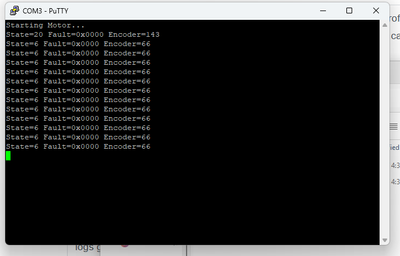

Hi everyone, I am using the X-NUCLEONUCLEO-IHM08M1 with the NUCLEO-G474RE and Field Oriented Control to control the LIN Engineering BL23E33-01D-04RO motor.I generated the code using MC Workbench, selecting the quadrature encoder (integrated into the ...

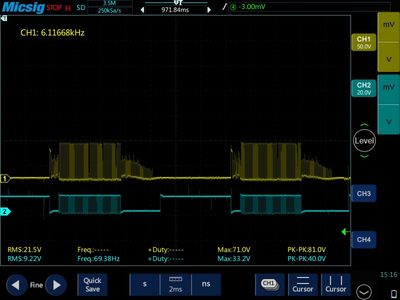

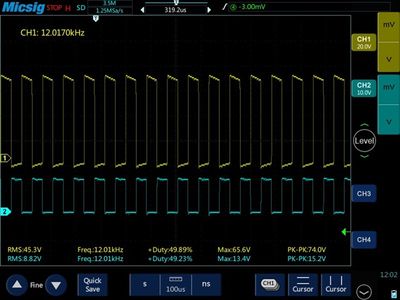

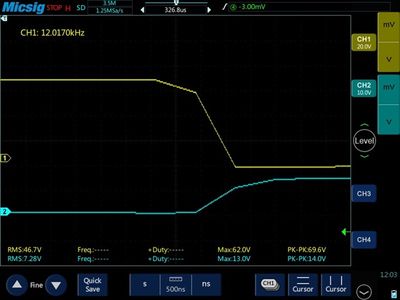

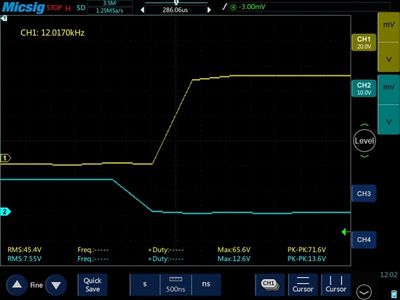

Hi Team,I am currently working on a 48V HALL sensored based BLDC motor control system (three-phase) using the STM32F405RGT6, DRV8300, and STP100N10F7 MOSFETs. The motor is running using six-step commutation PWM.Although the motor is rotating, I am e...
