Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...

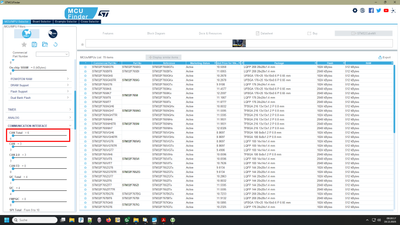

Hello.It's not possible to find a controller with a specific number of CAN buses using MCUFinder. MCUFinder counts each CAN bus twice: If it physically has 3 CAN buses, MCUFinder adds: 3 CAN buses + the same 3 CAN2.0 buses = 6 CAN buses. This is ...

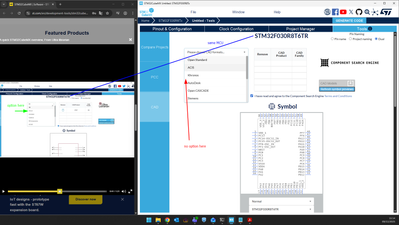

Hi there! Thank you for reading this.Where has the support for exporting footprints/symbols to Altium Designer from STM32CubeMX gone?In the promotional video from https://www.st.com/en/development-tools/stm32cubemx.html it appears there is an option ...
After upgrade from 6.15 to 6.16 on linux ubuntu 24.04 I got this blocking error if I load project file (created with cubemx 6.15):cannot invoke com.st.microxploer.mcu.IP.getInstanceName() because mpu is nullI tried both "migrate" and "continue" optio...
MCU: STM32H563VITx Stm32CubeMX version: 6.14.0 HAL Driver version: 1.5.0 When I enable EDATA option bytes in CubeMX, it generates the following code: void MX_FLASH_Init(void) { /* USER CODE BEGIN FLASH_Init 0 */ /* USER CODE END FLASH_Init 0 */...
The CubeMX 6.16.0 is able to generate a CMake-project for an STM32H7 - great. A small conflict currently exists in the following two generated files [for a "basic" STM32H7 project]:- CM7/CMakeLists.txt:69# Add linked libraries target_link_libraries($...
When enabling 2 ADCs , ADC1 and ADC2 of STM32U5A5 ,both in Independent mode . The RCC enabling in MspInit called only for ADC1 and not for ADC2. What causes , that If one decide disable generataion of call to MX_ADC1_Init() in CubeMx , in order to ...
Hi,I'm searching for a MCU with one or two advanced motor control timers to control 1 or 2 bldc motors.For this purpose I use the MCU selection tool from here: STM32 family of 32-bit microcontrollers (MCUs) - STMicroelectronicsWhen I use the filter f...
Hi,I have three small suggestions to improve the CMake build system generated by STM32CubeMX to be used by VS Code to fix some annoyances. 1.In cmake/stm32cubemx/CMakeLists.txt, useset(TOOLCHAIN_LINK_LIBRARIES "-lm")instead ofset(TOOLCHAIN_LINK_LIBRA...

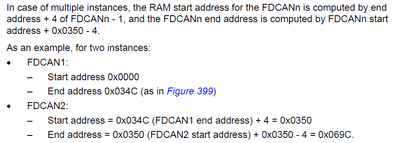

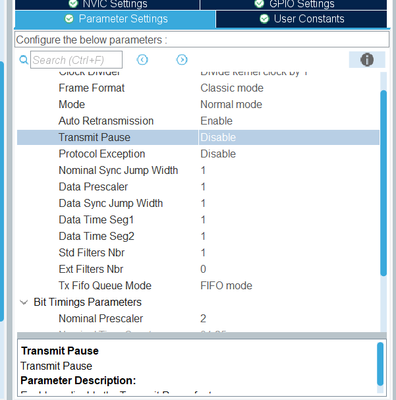

Hi, I am using 2 FDCAN ports on my custom board with STM32G0B1x MCU. As per application note AN5348, I can set message RAM offset for second port. But I don't see this setting in STM32Cube MX. As per reference manual, I got following details: But I...
Hello Community,I have been working on a BLE project with one service and three characteristics, two of which have server notification properties, and I have noticed the following issue in CubeMX 6.15 (server side, custom template).The function Custo...
