Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
Hello,With CubeMX version 6.16.0 and FW package version STM32Cube FW_N6 V1.3.0, the GPIO configuration's are missing from the generated HAL_I3C_MspInit and HAL_I3C_MspDeInit functions in stm32n6xx_hal_msp.c, when I3C is set to application context.App...
Subject: Linker Error: Multiple definitions of BLE assembly modules when using CubeMX v6.16.1 CMake generator on STM32WB09Environment:MCU: STM32WB09CubeMX Version: 6.16.1Toolchain: CMake / arm-none-eabi-gcc 14.3.1IDE: VS Code with STM32CubeIDE Extens...
Hello ST,FYI - It appears CubeMX was not updated since DP-FPU capability was added to the STM32N6 data sheets.Regards,Dave

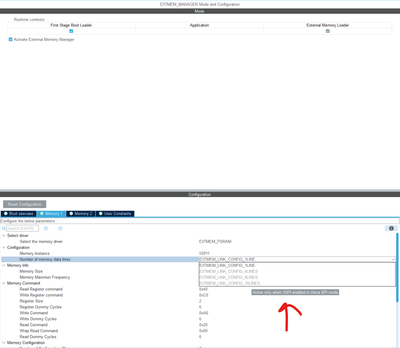

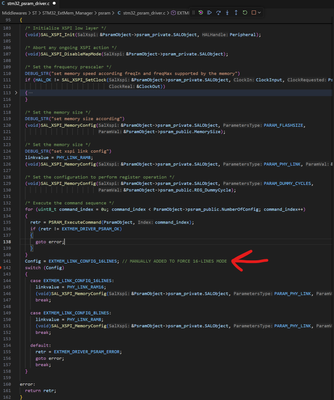

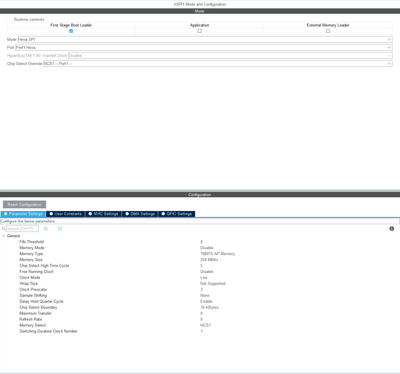

I have set XSPI1 to "Hexa SPI" mode. I'm using EXTMEM_MANAGER to manage the memory. I'm unable to select the setting EXTMEM_LINK_CONFIG_16LINE for "Number of memory data lines". Instead there is a info textbox which says "Active only when XSPI enable...
CubeMX 6.16.1MacOS 15.7.3STM32F469NIHXMultimedia - DSIHOST - Data and Clock Lanes - click,click,clickShow Advanced Parameters - checkHS Transmission fine tuning and LP Transmission fine tuningTransmission Delay on Clock Lane and Transmission Del...
Hello, We appear to be experiencing a severe code generation bug with CubeMX. After naming and sizing application regions in the memory management tool, what used to generate a correct linker script now generates bad output.Upon generation the linker...
I am using cubemx to generate a CMAKE project for a NUCLEO_144 based board (NUCLEO_H563).Project generation creates a cmake/stm32cubemx/CmakeLists.txt file that generates a macro define "USE_NUCLEO_144".it also auto creates a stm32h5xx_nucleo_conf.h ...
Dear STMicroelectronics,This is a bug report on the UI for STM32CubeMX 6.16.0 running on Windows 11 Pro 25H2.Please report this internally so that it may be fixed in some future version. Steps to reproduceStart STM32CubeMXFile / New ProjectSelect MCU...
Split from this thread. Yes, but No!CubeMX V6.16 now allows only exactly 32 TX Buffers ((TX Buffer Nbr + TX Fifo Queue Elmts Nbr) == 32).But less then 32 TX Buffer is allows by the Hardware, and some times, required if You want to maximize the RX Buf...
There's a bug in latest STM32CubeMX v6.16.1. When enabling RAMCFG for Appli on STM32N6 MCU, the IOC file becomes unloadable.I attached the demonstration IOC file. I created new project for STM32N6570-DK board, enabled RAMCFG peripheral for Appli, che...
