Ask questions, find answers, and share insights on STM32 products and their technical features.
Heyho,I'm currently designing a new modular system, with an STMH7 on the base-card. That one's basically up and running, including a self-made bootloader.Now I'm working on some new modules, these will be connected to the "base H7", probably via I2C,...
Hello Team,We are planning to use MCU P/N: STM32N657X0H3Q for our new design. We want to perform thermal simulation. Could you please help us for how to calculate power dissipation?Thanks.
Heyho,I think I need some more info about the internal bootloader ("BL") which I didn't find in AN2606 or AN3155 (UART). a) Are all BL interfaces active / scanned at the same time, and any interface finding any change in level will be "chosen"?From w...

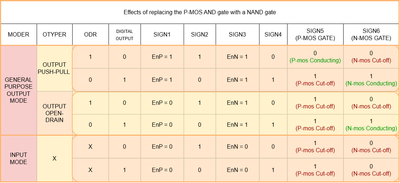

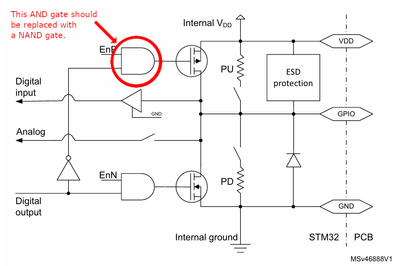

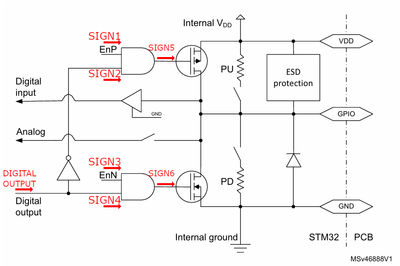

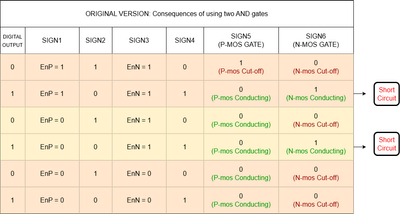

Hello everyone,I was reviewing the AN4899 Application Note and noticed a potential logic inconsistency that might lead to misunderstanding the GPIO output stage. I have prepared a short analysis and a proposed correction below. I would appreciate it ...
Hi, What is the official moisture sensitivity level (MSL) for STM32F072CBT6TR? I found conflicting information showing both MSL 2 and MSL 3.
Hello ST Community,I’m currently trying to select the right MCU/board from the STM32H7 series, but I’m a bit confused between the following options:STM32H723STM32H725STM32H735STM32H7A3VGT6My requirements:Need CORDIC support for fast math operationsR...

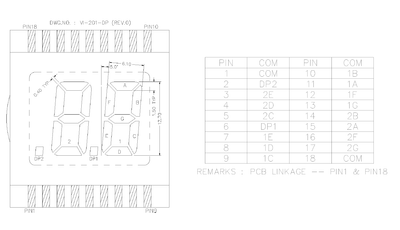

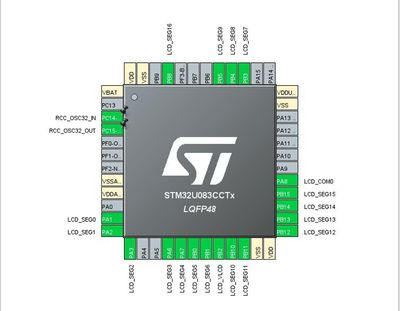

Hoping someone can assist.I have a 2 x 8 segment numerical glass LCD that I want to drive from the MCU.See two images below & uploaded files with this request.snippet from LCD data sheet.snippet from CubeMX pin out view.This display is Static with to...
Post edited by ST moderator: title and post edited to translate the content. 我在stm32F412RGT6的数据手册的6.1.6部分看到关于滤波电容的描述，2. The 4.7 µF ceramic capacitor must be connected to one of the VDD pin.从图中来看是以144PIN的芯片为例，但我使用的是64PIN的封装，是否也需要在其中一个VDD引脚放置4.7uf的电容，如...
Both 'U5 ADCs contain the LFTRIG bit; however, I could not find in either 'U5 datasheet the Tidle value above which this bit has to be switched on.JW
I'm using the STM32G474 at 170MHz. Is it possible to simulate hadc1.Init.ClockPrescaler = ADC_CLOCK_ASYNC_DIV512; since the G474 only recognizes up to ADC_CLOCK_ASYNC_DIV256; I need very slow readings from the ADC. Thank you Valter
