Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.
So I just plugged in my Eval kit. I have 12V in the barrel jack and am connected to the usb to my pc. When I switch to the appropriate port, I can use the eval kit GUI to connect and ask for the Firmware version. It responds 1.6 which should be corre...
I am having trouble with understanding the right sequence to wake up the VNF1048F with the SPI Commands does anyone have experience out there to get it working.

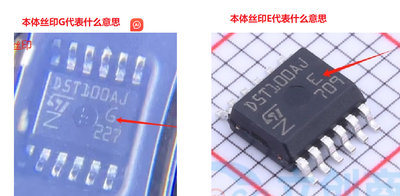

Model No. VND5T100AJTR-E, Brand No. STM, what do the silk-screened ‘G’ and ‘E’ on the material body mean? I didn't find the relevant description in the specification, please help me to answer, thank you! *This post has been translated from Chinese t...
16v 800 상 모터 위상 제어에 bta400-3-bw를 사용하고 있습니다.트라이액 제어에서 광 커플러는 아래 회로에서 자주 고장납니다.커플러는 moc3071sm, il4208-x007 등을 사용하십시오.증상은 사진을 참조하십시오. BTA16-800CW로 변경하려고 생각하고 있습니다.조언을 구하고 있습니다. 그리고!BTA16-800-BW 스너블리스 타입.회로와 같은 다른 스너버 회로를 설치해야 합니까?아니면 트라이액에서 스너버 회로를 사용하지...

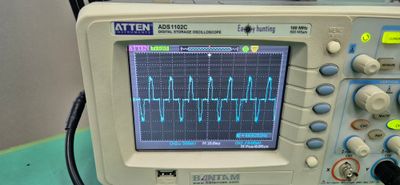

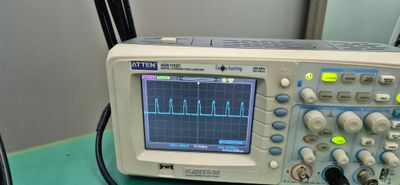

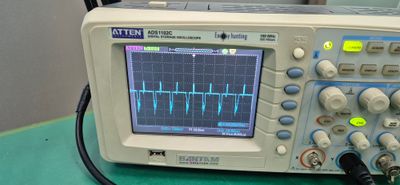

hello.I am using bta16-800-bw for 400v 3 phase motor phase control.In triac control, the optocoupler frequently fails in the circuit below.For couplers, use moc3071sm, il4208-x007, etc.Please see photos for symptoms.I'm thinking of changing to BTA16-...
Hi all,I am trying to design a power converter using the A69863V3TR and I am having some issues.I have followed the design section in the datasheet and used the online eDesignSuite to design a 3.3V DC/DC converter.The circuit has now been manufacture...
We are using the LD39200PUR as a regulator to step 5V down to 4.3V for a battery based system.The datasheet says the product incorporates reverse current protection to prevent current leaking from the output to the input but it is not functioning in ...
could you help me to get pincount for part number '' STPSC6H065DLF '' Pin Count for this PN "" as supplier site mentioned it as "4" while it's found in datasheet as "5"?

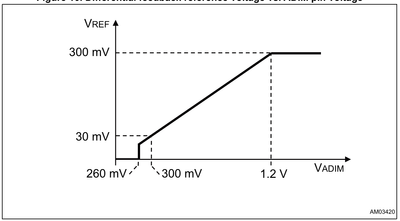

Hi, I did a PCB based on the ALED6001 and using the eDesign Suite.I want to use analog dimming only and wired it up similar than in the STEVAL-ILL072V1.Best case i wanted to achieve a 0-100% dimming but it was clear that, due to that curve provided i...
Hello Team,Good day, We are looking to use the STM CHIP STM6600/STM6601 in our upcoming project. Can you please let us know if this IC will be in production for the next seven years? If not 1. Suggest Any Part No. of Same Function Which is having P...
