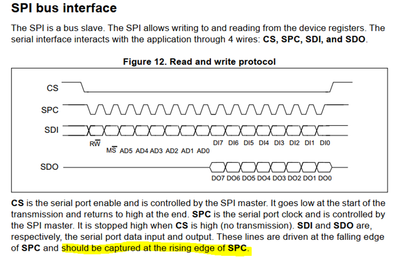

Resolved! What is the SPI mode of the gyroscope sensor I3G4250D?
I use the KIT STM32F411 DiscoveryWhen I choose:SPI CPOL: LowSPI CPHA: 1 EdgeIt works But when I choose:SPI CPOL: HighSPI CPHA: 2 EdgeIt does not work Could you explain why? Thank you!
