MEMS (sensors)

IIS3DWB XYZ accel operation in I2C mode and thresholds for wake up and activity interrupts.

In I2C mode for the IIS3DWB device the datasheet says it only support single axis mode because I2C is too slow to get the data. I want to use I2C mode to configure either wake up or activity thresholds for all 3 axis and then configure the interrupt...

Multiple ROI procedure on VL53L1X using ULD - how to?

Hi,I'm using ULD to get measurements from VL53L1X. My case need to get 9 ROI - divided FoV into 3x3. When I run such measurement procedure it with 2x2 = 4 RoI - It's okay. But when I get 3x3 RoI in a similar way I get measurements such as max u16_t =...

LSM6DSO32 FIFO Compression and FSM's

We are using the FIFO compression feature of the LSM6DSO32 which is working well for us if we use it standalone at 833 Hz. When we add the 4 FSM's that handle our motion recognition we start seeing duplicate tags in the compressed output implying tha...

Where can I find Linux drivers/example code for the LSM6DS33?

I have been looking for Linux drivers for the LSM6DS33 "iNEMO inertial module:always-on 3D accelerometer and 3D gyroscope", but have not had any luck. If anyone knows about any such repos or even references, it would be greatly appreciated.Thanks!

hi, im using LSM9DS1 in my new board. i can get the address when i use i2c scanner code, but when i try to read from it, there is no data coming in either from gyro/accelero or magnetometer.

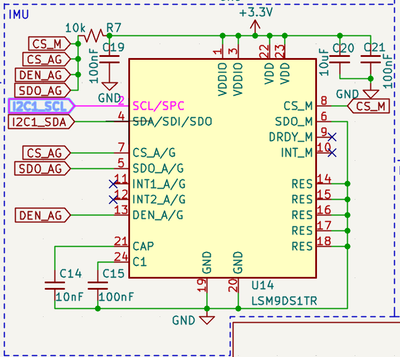

here is my circuit for the LSM9DS1i used the code from sparkfun breakout moduel to test the board. i can get the data from their board, but not my board.

LIS2DTW12 FIFO threshold interrupt not correct

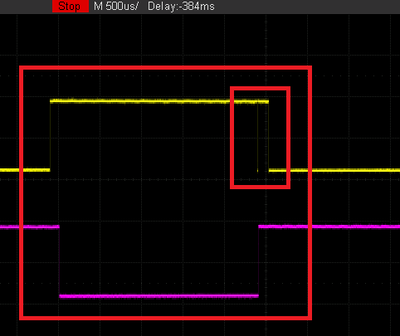

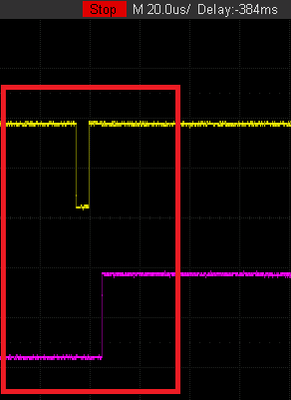

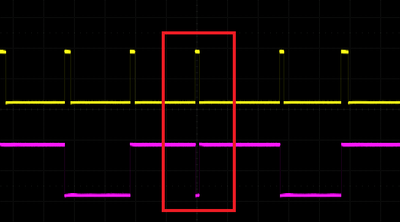

Hello,I'm using a LIS2DTW12, here the configuration :ODR 400HzFIFO threshold on INT2 push pull interrupt. Threshold 16Continuous mode All seems to work correctly but sometimes I have an incorrect interrupt. The INT2 signal is yellow, the purple is a ...

I work with the sensortile (STEVAL-STLKT01V1). I would like to acquire (accelerometer, gyroscope) data on the sd card but start recording via bluetooth on the St BLE application. Is it possible ?
