Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
Hello,STM32CubeMX installer on linux doesn't creating desktop entry file.Thanks in advance.
Dear STM expert: Currently, Iam facing an issue:when using the stm32f030f6p6 chip, I cannot find this chip model when creating new projects in stm32cubeide and stm32cubeMX ,thus it making it impossible to new projects,what this?hope a reply..than...
CubeMX 6.17. When creating a new project for H533RETx or for the corresponding Nucleo-H533, SYSCLK is set at 32 MHz.Not sure whether or not it is intended, but it looks like a trap for a new user, since the MCU datasheet talks about 250 MHz.Instead, ...

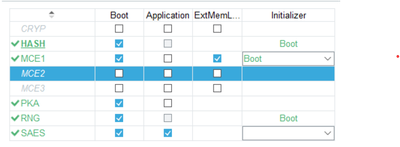

Hi, I'm working on the STM32H7S7L86H with cube MX 6.17 and cube H7RS 1.3.0I need to use RNG in appli and boot context but it is grayed because it accept only one context. It also block the usage of the hash module.Any idea how to fix this ?Thanks

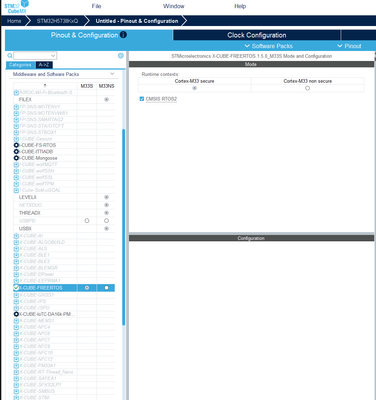

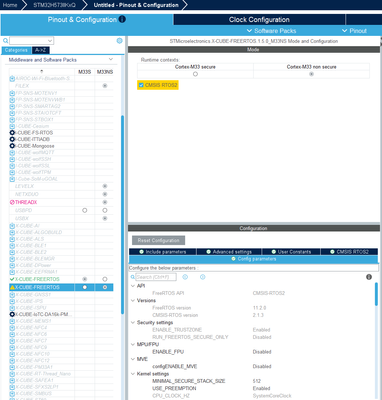

Hi All,I have an issue with STM32CubeMX 6.17.0 (Windows 11 + Visual Studio Code)I want to start a STiRoT Full secure project (with DA and encryption) for STM32H573 with FREERTOS.But when I add the freertos software pack, I don't get any configuration...

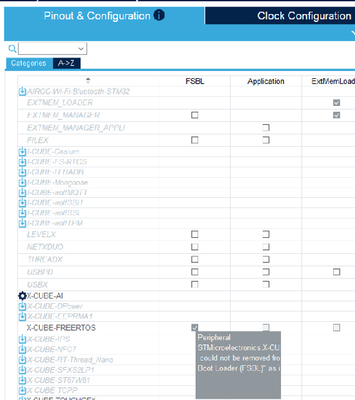

Hello, I have a simple CubeMX project with the STM32N6 MCU, and I cannot seem to be able to uncheck the FREERTOS option from the FSBL to move it to the Application. Is there something I am doing wrong? Thank you
Hi,I'm using STM32H5F5LJHxQ. External HSE Oscillator is 48MHz. RTC clock mux is set to HSE_RTC, divider set to "/48" and the tool shows correctly that RTC clock is 1000kHz (48MHz / 48).During my tests I discovered a wrong RTC time, error ~2%. (1.2 se...
See attachment, field gets erased every time I re-generate code using STM32 CubeMX.problem seen on versionsSTM32CubeMX version 6.16.1uVuion/Keil version 5.43This has been ongoing for a while so problem does exist on older versions of both.
Hello, maybe someone can check this,it seems to be incorrectly generated code. In my application for STM32H5xx I want to use ADC3. void HAL_ADC_MspInit(ADC_HandleTypeDef* hadc) { GPIO_InitTypeDef GPIO_InitStruct = {0}; RCC_PeriphCLKInitTypeDef ...
Hi, i'm missing something in the configuration of alternate function on STM32C092. I can't get working alternare function on shared pin, interested physical pin are PIN 1, 15, 20. Example1: PIN15 only the function on PA8 are working properly, neit...
