Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...

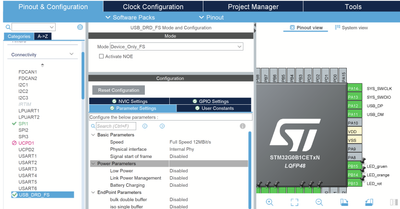

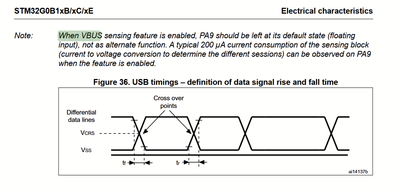

I want to use the STM32G0B1CET6N and communicate to this device using USB Full Speed (FS).I chose this model, because it has the internal "HSI48 RC" Oscillator, which can direclty supply a 48 MHz clock to the USB device. Thats the configuration: The...
Hello ST, Today, in two separate threads, I've had to walk two separate newcomers to STM32 through the pitfalls of trying to trigger a DMA to an arbitrary peripheral from a timer event. The threads are:what-are-gpio-events-how-do-i-connect-an-event-t...

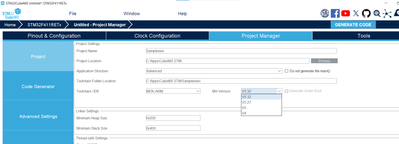

Hi Team,Please help add support for MDK-ARM version 6.22. Currently highest selectable Min Version is V5.32Thanks in advance.

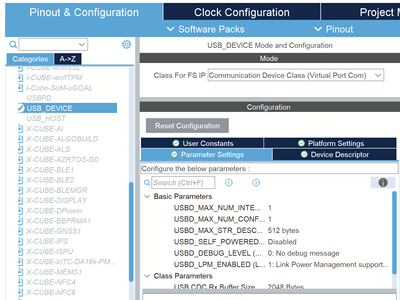

I am trying to configure my stm32l475 as a composite device combining a mass storage device and com port. I read that there should be an option in the "class for FS IP" dropdown to create a composite device, however I do not have that as an option. T...

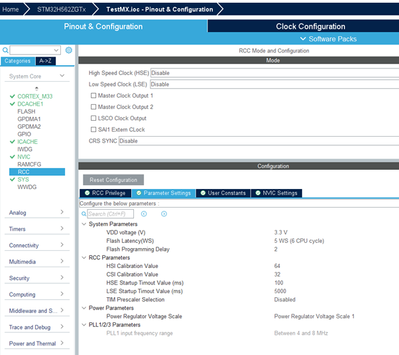

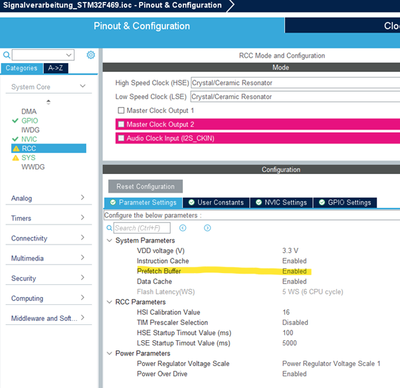

HiFor other STM32 (I checked a STM32L452 and STM32F469) I could enable the Flash Instruction prefetch by setting “Prefetch Buffer” to “Enabled” in the RCC settings. This then set PREFETCH_ENABLE to 1 in stm32F4xx_hal_conf.h.The STM32H562 also as a Pr...

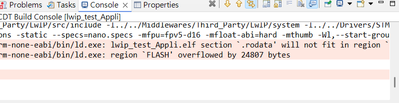

If I select STM32CubeIDE as the toolchain, I encounter the following error during compilation. However, if I switch the toolchain to EWARM, the project compiles without any errors.I’ve attached the .ioc file and build log for reference. Could you ple...

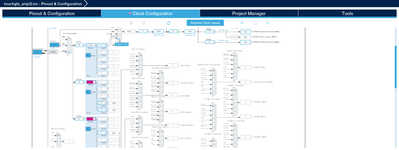

I'm using STM32H7R7, and I want to configure clock with 24MHz HSE(CPUCLK@600MHz), but the CubeMX can't resolve the error automatically. What should I do? Thanks!
When generating code with CubeMx version 6.14.1 there is a new bug (compared to version 6.13.0 where it worked fine).MCU: STM32U5A5QJIxQPeripherals: ADC1/2 and/or ADC4RCC Clocksource: SYSCLKWhen you change parameter setting in ADC_Settings "Clock Pre...
Hello,I use CubeMX V6.13.0 (now the newest version).I have find out a bug in the configuration wizzard from the FDCAN with the STM32G473.When I chose:FDCAN1, Clock Divider = "Divide kernel clock by 10"FDCAN2, Clock Divider = "Divide kernel clock by 1...

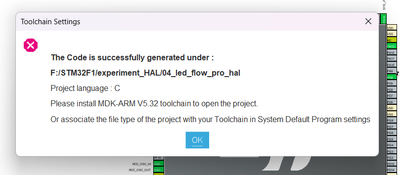

When generating code with stm32cubemx, an interface pops up, saying that I don't have the MDK-ARM toolchain installed, but I can burn the code normally with keil5 on my computer, why is this? what can I do next?
