Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
The ADC in stm32cubemx will throw a warning in All three ADC's while using a USB_OTG_HS. No matter what i try the error won't go away? Has anyone experienced this?? Will it cause any trouble in functioning of ADC?
Hello Folks,I want to decode my IR remote code or I want to know which IR protocol is used in my IR remote.MCU:- STM32f103IDE:- STM32CUBEMX, u Vision Keil.TSOP as IR receiver.Kindly guide me how is it possible?Thank you!!!
STM32CubeMX version 6.2.1, target STM3G474VE, CMSIS v2. If you create a time with "static" allocation, the "FreeRTOS Heap Usage" tab shows no heap usage by that timer. However, osTimerNew() always allocates the TimerCallback_t structure from the he...
Hi there, I am experimenting with the H747i-DISCO board to get the communication between two cores up and running. The mentioned example (github) is written for a slightly different board, the STM32H745-Discovery, so it should be not too difficult to...
Hello, when testing the SDcard on SDIO 1-bit interface , we see a big problem here:when card in slot, cpu stall in MX_SDMMC2_SD_Init() , on debug can see: card info sector count, block size etc. read seem ok, but then waiting for response -- forever....
How to implement this in UART+ DMA(no polling /or IRQ enabled methods) STM32cubeMX and IDE both?

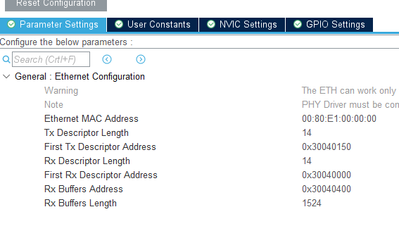

Hi everyone,when using the CubeIDE 1.5.0 I encountered unexpected behaviour. I set up the Ethernet peripheral of the STM32H7 in a way that I have 14 Rx and 14 Tx ETH descriptors: However, after generation the code only specifies 4 descriptors each:At...
Processor stm32H750. stm32CubeMx ver. 6.2.1.When calling "HAL_DFSDM_ChannelDeInit" and "HAL_DFSDM_FilterDeInit".and then call "HAL_DFSDM_FilterInit" and "HAL_DFSDM_ChannelInit" the "__HAL_RCC_DFSDM1_CLK_ENABLE" is not called. (Result not clock for th...
Hi,With CubeMX I can adjust where the repositories are saved. This function is missing in CubeIDE and its also not using the same from CubeMX.Because the saved files are huge, then I get problem when I login/logout in the company. Because the files a...
