Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
The application bundle contains Contents/MacOs instead of the required Contents/MacOS. On case-sensitive file systems, this prevents LaunchServices/Finder from starting the app.The binary runs correctly when launched directly from Terminal.Renaming M...
"I am generating code using STM32CubeMX for the STM32WB09, aiming to implement BLE with CMSIS-OS.I am facing an issue where, even after explicitly disabling the Sequencer when enabling CMSIS-OS, CubeMX still generates code that relies on the Sequence...

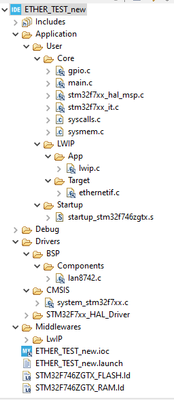

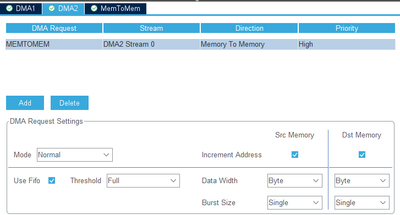

Hi,I'm probably doing wrong as a newbie in STM32 programmation:I try to generate this configuration code for dma but I can't see any dma.c file in the project folder.(I did refresh the project after generating the code)Thanks for help
Hi, I found a small bug in STM32CubeMX for STM32WL55:Enabling the option "MSI Auto Calibration" for section "RCC" does nothing, i.e. generated code doesn't change.I think it should add a call to HAL_RCCEx_EnableMSIPLLMode() or LL_RCC_MSI_EnablePLLMod...
Hi there,I found an issue with the CubeMX 6.16.1 during the TouchGFX usage. I generated the files by TouchGFX 4.26 (selected the Stm32h7s7 development board with 24bpp project) and opened the cubemx to generate the code (I've been using vscode so I c...
The erroneous configuration in the tx_initialize_low_level.S is this: LDR r1, =0x40FF0000 // SysT, PnSV, Rsrv, DbgMThe tx_initialize_low_level.S file is generated upon selecting ThreadX 'Core' in the STM32CubeMX v6.15.0...
Hi all, I am trying to get a zephyr project running on an STM32N6570-DK, including Camera, NPU, VENC and Ethernet.I have been using STMCubeMX 6.16.1 to create the project based on the provided DK default settings.For the Ethernet block, the configura...
CubeMX 6.16.0 "Memory Management" used for ethernet and with enabled linker file generation creates the following [ORIGIN adapted from default]:RxDescripSection (rwx) : ORIGIN = 0x30040000, LENGTH = 0K TxDescripSection (rwx) : ORIGIN = 0x30...
Using latest STM32CubeMX version 6.16.1 on STM32N6570-DK. It is possible to assign peripherals like UART, I2C, etc. into multiple contexts - boot, app, memloader, but I cannot find a way to assign plain simple GPIO's into multiple contexts. CubeMX on...
Hello!I wanted to set up some settings from CubeMX, specifically NX_IP_PERIODIC_RATE in NetXDuo and Rx Descriptor Length in ETH section. NX_IP_PERIODIC_RATE default value is set to 100, but when I set it to 1000, the value does not change when re-gen...
