Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...
Dear ST,I was not able to find any documentation for composite builder feature of your USB MW library. Is it documented somewhere?I was able to get USB composite device running after enabling USE_USBD_COMPOSITE define. But I had to fix some bugs, tha...
Dear All,I have a nucleo-l010rb board and I am generating a code to read 24C512 EEPROM on I2C. I have tried CubeMX Firmware Version 1.12.1 and 1.11.3. When I generate the code for the IDE default PA9 and PA10 following is the HAL_I2C_MspInit function...

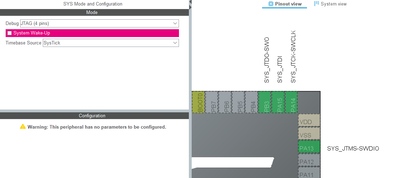

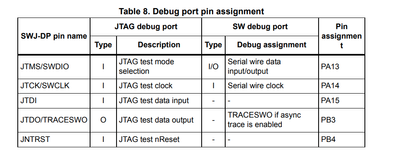

Hello,I use CubeMx (6.6.1), STM32F411CCUxCubeMx causes a problem when 'PB4' pin and JTAG (4 pin) are used together.If JTAG (4pin) is set in CubeMx, PB4 is not used.If i set something in PB4, JTAG is released. In the datasheet, PB4 and debug ha...
Hi,I'm using STM32Cube to configure an STM32U575. I'm trying to configure the ADC4 so that oversampling is used. I need to set the Sequencer option to "Sequencer set to not fully configurable" so I have access to the additional channel inputs (IN15,...
In STM32CubeMX clock schematic and in the clock schematic of the reference manual CK_PWR is mentioned. It is never explained what it does and what it is for.I'd like to know what it is for and how it affects current consumption (since it is before th...
In adc.c (HAL driver), line 89 there are wrong constants generated:LL_ADC_SetCommonPathInternalCh(__LL_ADC_COMMON_INSTANCE(ADC1), LL_ADC_PATH_VREFINT|LL_ADC_PATH_TEMPSENSOR);correct is:LL_ADC_SetCommonPathInternalCh(__LL_ADC_COMMON_INSTANCE(ADC1), LL...
The ADC and SPI use the DMA, but the CubeIDE initialize the DMA at last ant the SPI initialization fails. See screenshot.CubeMX Version 6.6.1Please fix this mistake. Attachment, the Screenshot.The second problem: I cannot chage the "Rank" order from ...
STM32CubeIDE Version: 1.9.0With the STM32CubeMX : Version: 6.5.0-RC4 and a project for STM32U585in the "project manager/advanced settings" tab, a line is missing to activate the "register callback" for the OCTOSPI interface best regards
CubeMx 6.4.0 fail to generate STM32H750 HRTIM LL code. There are java exception in generated file hrtim.c.CubeMx project is enclosed.
