Error in Datasheet of STM32WB10

[RWeil.2]

Hi,

I just found an error in the data sheet and wanted to let you guys know. Don´t know who else to contact.

Kind regards
René

[Issamos]

Hello @RWeil.2

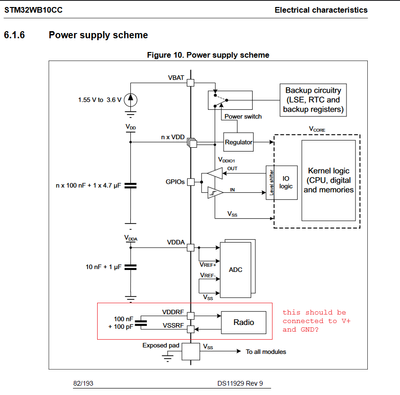

I can confirm the error in the figure 10 of the STM32WB10 datasheet. They should add a vdd and a ground to the radio power supply:

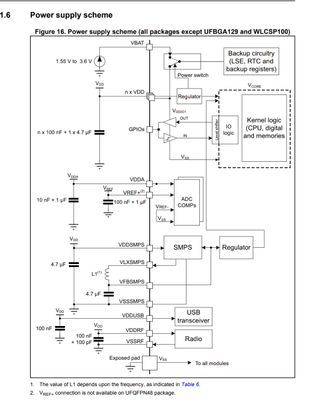

as in the datasheet of the STM32WB55: 

@Imen.D can you check and report that issue.

Best regards.

II

[Imen.D]

Hello @RWeil.2, @Issamos,

Thank you for having reported this issue.

An internal ticket (ID 161429) is submitted in order to correct the document.
PS: ID 161429 is an internal tracking number and is not accessible or usable by customers.

Thanks

Imen

[RWeil.2 · Accepted solution]

sorry, the number should be DS13259 Rev6

[Issamos]

DS13259 is the datasheet of the STM32WB10CC. But, ID 161429 is the reference of an internal ST ticket that has been created to correct the DS13259 error.

Best regards.

II
