Is it possible to use the CAN bus protocol on an STM32 without using a module?

[matehyliffe]

"Hi, I'm working on an EV project. We're attempting to implement the CAN bus protocol on STM32. I'm wondering if there's a way to communicate between two STM32s using the CAN bus without using a module?"

[AScha.3 · Accepted solution]

Hi,

what is the "module" here ?

If you mean a driver chip : yes, you need one on every cpu-> CAN bus; transforms rx/tx from cpu to CANH/CANL symmetrical/complement signal line..

Something like this :

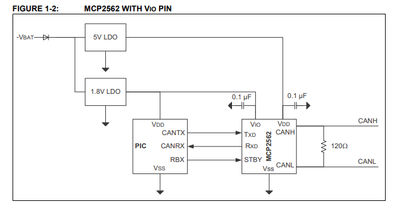

MCP2562  doing 3,3v cpu -> 5V standard CAN bus voltage level; and termination 120r on every end of line.

is about $ 1,50  on every cpu , and you work with real conditions, can connect to other CAN bus devices also.

[matehyliffe]

The term 'module' referred to the transceiver, but as far as I understand, I need to purchase it to work on STM32. Thank you.

[Tesla DeLorean]

You need something to merge the signals. There's a low cost method with diodes and a resistor you can use to experiment at a board level.

https://www.keil.com/appnotes/files/apnt_236.pdf

[matehyliffe]

I was planning to buy MCP2551, but since it's not sold in my country, I will buy the SN65HVD230 module. Is it compatible with STM32F407?

[Tesla DeLorean]

I expect so, it's been used on several of the STM32 EVAL boards

[mƎALLEm]

---

I will buy the SN65HVD230 module. Is it compatible with STM32F407?

---

Yes indeed you can use this transceiver. It's already used in some STM32 Eval boards.
