L7808 Regulator 19v 20ampere Power Supply

RendiArdian · ‎2025-09-21

I was design 19 volt regulated power supply, but I don't know the exact value for the transistors, and I noticed at the voltsim output didn't reach the maximum 19 volt output, can anyone help me for the solution for my design, regards.

@all

Peter BENSCH · ‎2025-09-21

@RendiArdian

The schematic shows a current regulator that uses the potentiometer as a shunt. However, if your output parameters are actually 19V, 20A (even though you have drawn 1.9V), there would have to be 20,000V at the 1k potentiometer (20A * 1k = 20kV).

Please explain what your schematic is supposed to do or what you are connecting there, because (at least) something about it is not right.

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

View solution in original post

AScha.3 · ‎2025-09-21

Why using a fixed 8V reg for a 19V supply ?

+

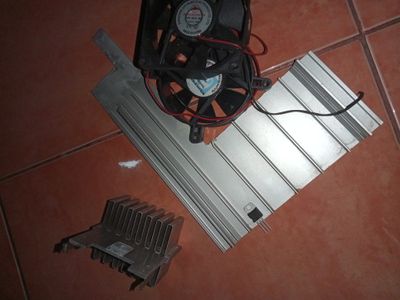

You have planned the cooling ? (need a big heatsink, + fan probably )

If you feel a post has answered your question, please click "Accept as Solution".

gbm · ‎2025-09-21

Actually what you've designed is a big heater with an annoyingly bright lamp.

My STM32 stuff on github - compact USB device stack and more: https://github.com/gbm-ii/gbmUSBdevice

RendiArdian · ‎2025-09-21

@AScha.3

@gbm

Okay, done, thanks but...,

What about the T1,T2,T3 transistor type ?and, is my design will run correctly ?

Can you help me to test my design with yours Simulator ? What is the max. voltage output ?

Peter BENSCH · ‎2025-09-21

@RendiArdian

The schematic shows a current regulator that uses the potentiometer as a shunt. However, if your output parameters are actually 19V, 20A (even though you have drawn 1.9V), there would have to be 20,000V at the 1k potentiometer (20A * 1k = 20kV).

Please explain what your schematic is supposed to do or what you are connecting there, because (at least) something about it is not right.

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

RendiArdian · ‎2025-09-21

@Peter BENSCH thank you so much for your help, well I see my pot act as a shunt instead as voltage divider. and I guess my 1k pot will give me 13.8 volt at half turn for my Dakai transformer and also can be used to turn my Laptop on at max. turn.
