Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.

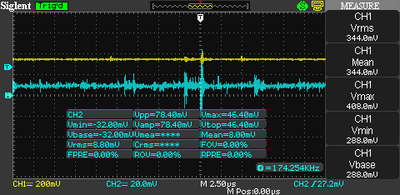

Posted on January 04, 2017 at 13:37Hi guys, I'm designing PSU for battery-powered board.Source is a single Li-Po cell, output voltage is 3,3V @500mA (peak, average would be less than 400mA).I used STBB1-APUR to get 3,3V from battery (2,7 to 4,2V) bu...
Posted on January 02, 2017 at 16:01Hi,I see strange behavior of L6482H output toward FET gate, I'm expecting that the high side output amplitude will be the Vboot (Vs+Vcp) to allow proper Vgs and low Rdson over the FET but some time the amplitude is...
Posted on December 28, 2016 at 08:57I am using STLQ015M18R to drive a light load of 0-2uA at temperature up to 70c,My question is what is the maximum current that STLQ015M18R consumes from VIN excluding the 2uA it drives the VOUT.
Posted on December 23, 2016 at 14:35 Title Document: Power Management Guide 2016Optimizing complete solutions in terms of energy efficiency according to market requirements for features and performance is practically mandatory. The key element in de...
Posted on December 22, 2016 at 07:48We have started working on PCB for L6566BH based design for 277V and 480V. Now we require some PCB layout Guideline for the chip, which is generally available in case of other Power Supply switcher, We were trying...

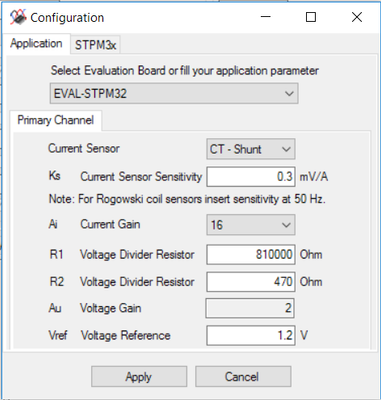

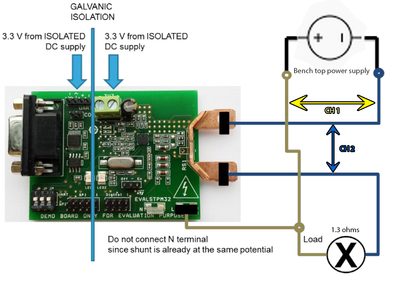

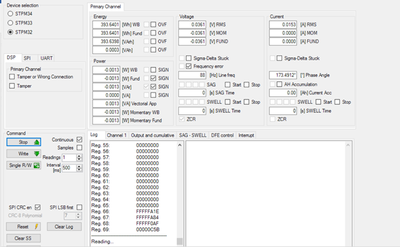

Posted on December 20, 2016 at 21:35Hello,I am currently developing a device to measure AC or DC current on the same channel, depending on what type of voltage source the end user decides to connect to that channel.We are thinking of using the STPM ...
Posted on December 20, 2016 at 06:56Is there the MTBF or FIT value for the product STY145N65M5? thanks.
Posted on December 17, 2016 at 16:45Hello,I used the online tool to create a 15V / 230mA out design using the Viper06LS and followed the same including the components suggestions. The circuit seemed to perform almost perfectly and the output was con...

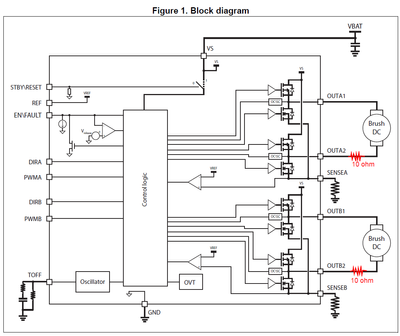

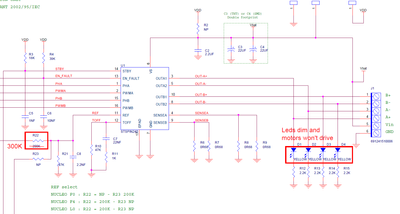

Posted on December 14, 2016 at 06:04I cannot get thesehttps://www.seeedstudio.com/3.7V-50000RPM-Small-Coreless-Motor-716-p-1884.html running on this http://www.st.com/content/st_com/en/products/ecosystems/stm32-open-development-environment/stm32-nuc...
Posted on December 08, 2016 at 14:55hi, please help me a wiring schematic of IC ATIC39-B4 A2C08350, thanks and good luck to you
