Ask questions on STM32CubeMX. Discuss code generation and configuration challenges, among other topics.
We are pleased to announce that version 6.17.0 of STM32CubeMX is available. What is new in 6.17.0: Added support for new microcontrollers across the STM32WBA, STM32H5, and STM32U3 seriesAdded support for new boards: NUCLEO-WBA25CE1, NUCLEO-H5E5ZJ, ST...

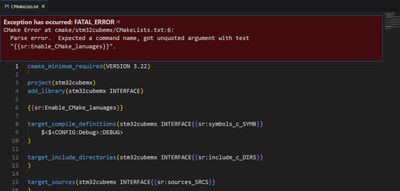

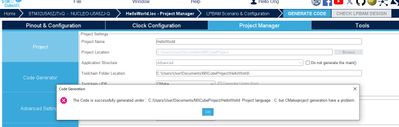

Hello: I am trying to use VS Code. below message will always pop up. With the generated codes I had another set of errors at VS Code. Error at VS Code I need some guidance. Regards Simon

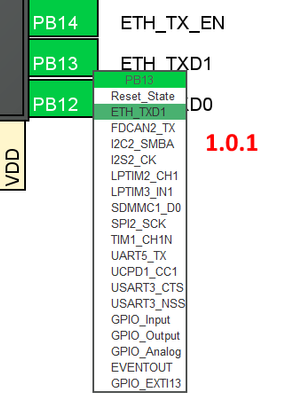

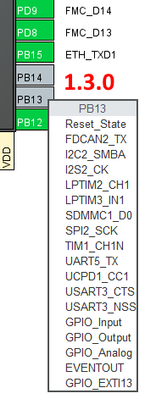

Hello everyone,I recently encountered an issue after updating the STM32H5 MCU Package from v1.0.1 to v1.3.0. Some peripheral pin assignments have changed, and previously available pin options are no longer configurable.I started my project in 2024 u...
A new question moved from this thread to the correct forum board (to be answered by CubeMx team) Hi If STM32U5 has no support for Ethernet why in configurator i can enable the Middleware NetxDuo? The question start from this point, NetxDuo support, ...
MacOS 15.3.1. CubeIDE 1.18.0. Firmware STM32Cube FW_U5 V1.7.0.I was tracking down an issue with SD cards on SDMMC2 on an STM32U5G9N not wanting to start.I found that HAL_SD_MspInit calls:__HAL_RCC_SDMMC1_CLK_ENABLE();instead of:__HAL_RCC_SDMMC2_CL...
Posted on October 17, 2017 at 12:08When using CubeMX, with STM32L476, for setting LSE drive capability other than 'Low Drive' the setting will not be implemented. This is due to the fact that the write access using bit DBP in PWR->CR1 is not set pri...

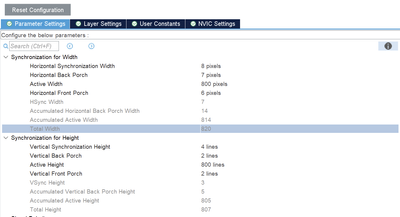

Hi,looking at the screenshot below of CubeMX in the LTDC, the total Width and total Height are non-editable (i.e. auto calculated) but they are one pixel less?For example, for the attached display datasheet:- Horizontal Sync Width (Editable) = 8 pixe...
New in CubeMX, so read this with "nonexpert" flag set ;)If HSE is used as source for RTC on STM32L072 device, it fails to initialize clock source for RTC.Running RTC with LSI or LSE both work fine, but with HSE it fails, regardless of prescaller sett...

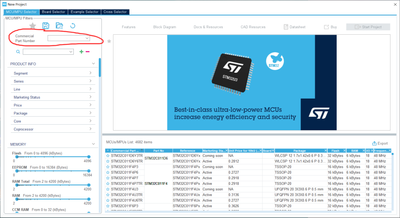

Hi。A simple yet glaring bug that persists: when you open stm32cubeMX and enter information in the 'Commercial Part Number' field, you'll notice that the letters you type appear twice. For example, if you type 's', the input box shows 'ss'; if you typ...
Hello,When a user adds a peripheral (for example I2c), CubeMx picks some default and/or available pins for the device.It would be really nice if CubeMX can list all the Alternative pins that this peripheral can use. So by right clicking on "I2C_SCL...
