How to configure I2C_TIMINGR for STM32L073RZT6?

Mohsin · ‎2024-06-26

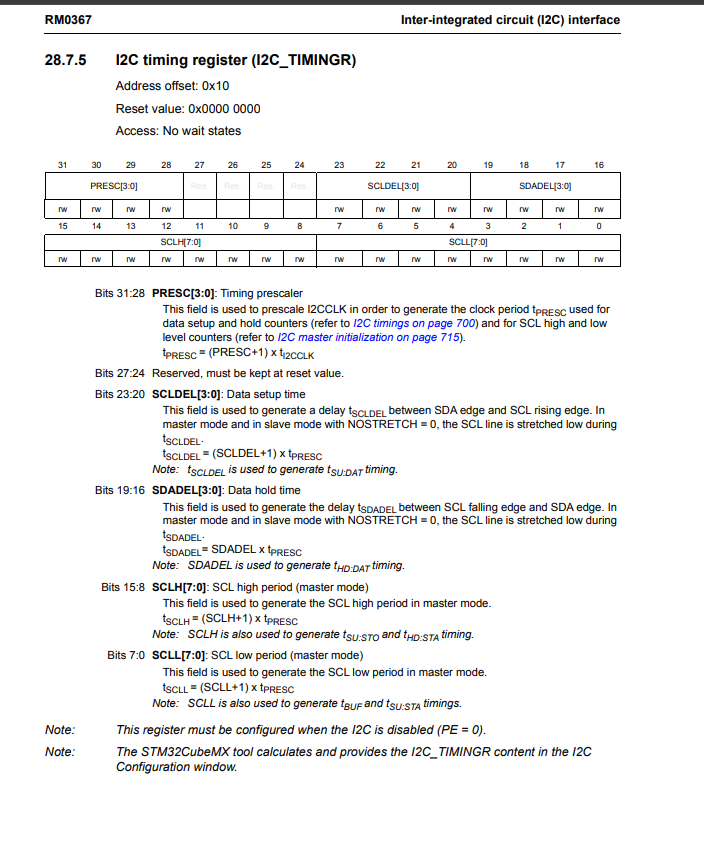

I2C_TIMINGR is configured for I2C bus speed of 400kHz. Is his configuration correct?

PRESC[3:0] = 0010 (PRESC = 2)
SCLDEL[3:0] = 0001 (SCLDEL = 1)
SDADEL[3:0] = 0001 (SDADEL = 1)
SCLL[7:0] = 00001010 (SCLL = 10)
SCLH[7:0] = 00001010 (SCLH = 10)

Is it correct or not?
