Guidance for Interfacing 7" 1024×600 LCD with STM32H743ZI

[Kannika]

Hi,

We are planning to use STM32H743ZI for our project.

Our requirement is to interface a 7-inch LCD touch display with 1024x600 resolution using a 24-bit RGB interface (RGB888) through LTDC.

Can STM32H743ZI reliably support this display resolution? Also, what frame rate can realistically be achieved with this configuration?

Are there any important hardware or performance considerations before selecting this MCU?

Any suggestions or reference designs would be helpful.

Thanks.

[Andrew Neil]

Riverdi (among others) have a number of displays - up to 12.1" - based on H7:

https://www.st.com/en/partner-products-and-services/riverdi-stm32-displays.html

https://riverdi.com/knowledge-base/stm32-getting-started

ST have eval boards with 5/5.7" displays:

https://www.st.com/en/evaluation-tools/stm32h7s78-dk.html

https://www.st.com/en/evaluation-tools/stm32h753i-eval.html

via: https://www.st.com/en/microcontrollers-microprocessors/stm32h743zi.html#tools-software

[mƎALLEm · Accepted solution]

Hello @Kannika and welcome to the ST community;

AN4861 "Introduction to LCD-TFT display controller (LTDC) for STM32 MCUs"

https://www.st.com/en/partner-products-and-services/riverdi-stm32-displays.html

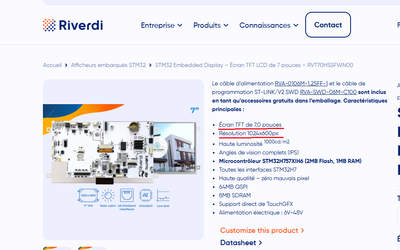

Using Riverdi board:

https://riverdi.com/fr/product/7-inch-lcd-display-stm32h7-frame-rvt70hssfwn00?srsltid=AfmBOor6JTenPNM1U1ScMpNVHtrKVtVqVj-XNgeCxwg_m1t2NYd8tHEm

So yes it can interface 7" 1024×600 LCD with STM32H743ZI.

PS1: STM32H755 have the same LCD-TFT peripheral.

PS2: STM32H743ZI is a 144 package check if all LTDC signals are available on that package.

[MM..1]

Most important is SDRAM here ... And too DSI ?

[Kannika]

Thanks for the suggestion.

Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?

It would be very helpful for understanding the LCD interface implementation and overall hardware architecture.

[Kannika]

Thanks for the suggestion.

Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?

It would be very helpful for understanding the LCD interface implementation and overall hardware architecture.

Thanks.

[Andrew Neil]

@Kannika - note that everyone can see every post - there's no need to repeat the same thing in multiple replies.

You can mention multiple people using @

---

@Kannika wrote:

Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?.

---

You'd have to go to Riverdi for that - it's their product:

https://riverdi.com/product/7-inch-lcd-display-stm32h7-frame-rvt70hssfwn00

https://riverdi.com/contact

[mƎALLEm]

Hello @Kannika ,

---

@Kannika wrote:

Thanks for the suggestion.

Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?

---

That's not a ST design but rather a partner of ST:
https://www.st.com/en/partner-products-and-services/riverdi-stm32-evaluation-board.html

You need to check the Riverdi site https://riverdi.com.

PS: that's a new question.
