hello everybody: l'm currently debugging the FOC motor with MC Workbench. Now I have generate the code with the open loop configuration. According to the user mannual, I can use the APIs in the code as follows:------------------------------------F...

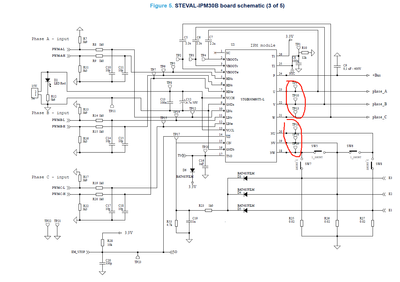

Hello,I need you help . For implementing sensorless control of a PMSM motor using the STEVAL-IPM30B and STM32F407, how should their pins be connected? Should the control board's required feedback for voltage and current be directly connected from the...
I have a STSPIN32F0A board on which, I need support on below points1) Ability to operate the motor through LIN/PWM signal rather than an ADC signal, currently the EVAL board supports an ADC through an onboard potentiometer which I want to remove. 2) ...

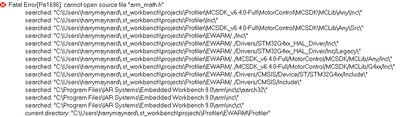

Hi, I'm trying to profile a motor on the latest firmware. I can't get the latest firmware to build with the profiler enabled and get a series of issues related to arm_math.h.Are there any known fixes to this or are there any significant downsides to ...

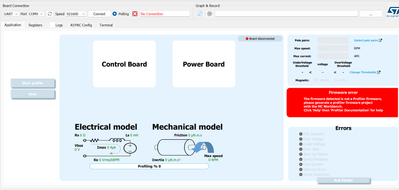

I am using the Nucleo-IHM17M1 and Nucleo-F401RE to evaluate a high-speed drone motor (22,000KV) with sensorless drive. I am particularly interested in the Motor Profiler function, since some key motor parameters are not provided by the manufacturer....
I can't increase the motor speed beyond a certain point.For example, when using the ST Motor Pilot interface, I set the Speed Reference variable to 2500 RPM, and the Mechanical Speed reaches approximately the same value (2495 RPM). However, when I i...
Hello,I bought the STM32 Nucleo Pack with the Nucleo-F302R8, the X-Nucleo-IHM07M1 and a three-phase motor.I use MCSDK to control my motor and it's no problem.But when I want to add an external potentiometer to the ADC, I can't get the values from it....
Hello All,I'm using VNH707AY motor driver to drive 2 motors separately i want to interface with my STM32Can anyone share the schematic or references for the same which can help me in this.Thanks & Best Regards,Sakshi
Hello,I have a custom Board based on the evspin32g4 dual, what Values should i put in "Charge Boot Capacitor Time" and "Charge Boot Capacitor Duty" in the motor control workbench?

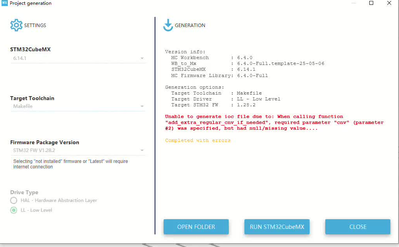

The single-resistance mode of the current sensor can generate successfully, while the three-resistance mode fails to generate Software version:MCSDK 6.4.0 CUBEMX 6.14.1CUBEFW 1.28.2 log2025-07-04 10:29:20,884 DEBUG [WB_to_MX.lambda$run_gui_mode$0] A...
