HAL I2C Slave

Chuev.Vladimir · ‎2018-04-24

Posted on April 24, 2018 at 12:08

I'm trying to make I2C Slave using examples from Cube.

The wizard can write the register, but when reading the HAL_I2C_ListenCpltCallback is called only once.

Can someone share their working code with me? I don't understand how this should work.

uint8_t i2cSlavDirection;

uint8_t i2cSlaveTransmitBuffer;

uint8_t i2cSlaveReceiveBuffer[2];

// Never called

void HAL_I2C_ErrorCallback(I2C_HandleTypeDef *i2cHandle) {

_Error_Handler(__FILE__, __LINE__);

}

// Never called

void HAL_I2C_SlaveTxCpltCallback(I2C_HandleTypeDef *i2cHandle) { }

// Never called

void HAL_I2C_SlaveRxCpltCallback(I2C_HandleTypeDef *i2cHandle) { }

void HAL_I2C_ListenCpltCallback(I2C_HandleTypeDef *i2cHandle) {

HAL_GPIO_TogglePin(GPIOB, LED_GREEN_Pin);

switch (i2cSlavDirection) {

case I2C_DIRECTION_TRANSMIT: { // master write

// ... reg write ...

}

break;

case I2C_DIRECTION_RECEIVE: { // master read

// ... get reg value and write to i2cSlaveTransmitBuffer ...

if(HAL_I2C_Slave_Sequential_Transmit_IT(i2cHandle, (uint8_t*)&i2cSlaveTransmitBuffer, 1, I2C_FIRST_AND_LAST_FRAME) != HAL_OK){

_Error_Handler(__FILE__, __LINE__);

}

break;

}

// Restarting

if(HAL_I2C_EnableListen_IT(i2cHandle) != HAL_OK){

_Error_Handler(__FILE__, __LINE__);

}

void HAL_I2C_AddrCallback(I2C_HandleTypeDef *i2cHandle, uint8_t transferDirection, uint16_t addrMatchCode) {

i2cSlave.transferDirection = transferDirection;

// 2 - master write, 1 - master read

uint8_t receiveSize = transferDirection == I2C_DIRECTION_TRANSMIT ? 2 : 1;

if(HAL_I2C_Slave_Sequential_Receive_IT(i2cHandle, (uint8_t*)i2cSlaveReceiveBuffer, receiveSize, I2C_FIRST_FRAME) != HAL_OK){

_Error_Handler(__FILE__, __LINE__);

}

void StartDefaultTask(void const * argument) {

if(HAL_I2C_EnableListen_IT(&hi2c1) != HAL_OK) {

_Error_Handler(__FILE__, __LINE__);

}

while (1);

}

#hal #i2c-slave #hal_i2c

Frank CA · ‎2018-04-24

Posted on April 24, 2018 at 13:20

Ok, in order for me to try to help please supply the following additional info

- chip or board you are using

- which Cube example are you using

- what are you using as master I2C

- IDE and link you are using

I will try to replicate your setup.

Frank.

Chuev.Vladimir · ‎2018-04-25

Posted on April 25, 2018 at 12:24

,

I use trueSTUDIO and STM32F101C8U

I looked at an example in , F0_V1.8.0\Projects\STM32F072RB-Nucleo\Examples\I2C\I2C_TwoBoards_RestartAdvComIT

I don't understand anything, now my call stack is like this:

♯ RESTART_LISTEN

,

♯ MASTER_WIRE

,

♯ RESTART_LISTEN

,

♯ MASTER_WIRE

,

♯ MASTER_READ

Slave code:

void HAL_I2C_AddrCallback(I2C_HandleTypeDef *hi2c, uint8_t transferDirection, uint16_t addrMatchCode) {

,

, , ,if(transferDirection == I2C_DIRECTION_TRANSMIT) {

,

, , , , , ,// ♯ MASTER_WIRE

,

, , , , , ,if(HAL_I2C_Slave_Sequential_Receive_IT(&,hi2c1, (uint8_t *)&,(i2cSlaveReceiveBuffer[receiveIndex++]), 1, I2C_FIRST_FRAME) != HAL_OK) {

,

, , , , , , , , ,Error_Handler(),

,

, , , , , ,}

,

, , ,} else {

,

, , , , , ,// ♯ MASTER_READ

,

, , , , , ,receiveIndex = 0,

,

, , , , , ,// ... get reg value and write to i2cSlaveTransmitBuffer ...

,

, , , , , ,if(HAL_I2C_Slave_Sequential_Transmit_IT(&,hi2c1, (uint8_t*)&,i2cSlaveTransmitBuffer, 1, I2C_LAST_FRAME) != HAL_OK) {

,

, , , , , , , , ,Error_Handler(),

,

, , , , , ,}

,

, , ,}

,

}

,

void StartDefaultTask(void const *argument) {

,

, , ,receiveIndex = 0,

, , ,while (1) {

,

, , , , , ,// ♯ RESTART_LISTEN

,

, , , , , ,if (HAL_I2C_EnableListen_IT(&,hi2c1) != HAL_OK) {

,

, , , , , , , , ,Error_Handler(),

,

, , , , , ,}

, , , , , ,while(HAL_I2C_GetState(&,hi2c1) != HAL_I2C_STATE_READY),

, , , , , ,if(receiveIndex == 2) {

,

, , , , , , , , ,receiveIndex = 0,

,

, , , , , , , , , // ... reg update ...

,

, , , , , ,}

,

, , ,}

,

}

Master code:

, , , uint8_t reg = 3,

,

, , ,uint8_t data = 50,

,

, , ,uint8_t read,

,

, , ,uint8_t slave = 0x20 <,<, 1,

, , ,HAL_I2C_Mem_Write(&,hi2c3, slave, reg, 1, &,data, 1, 100),

,

, , ,HAL_Delay(50),

, , ,HAL_I2C_Mem_Read(&,hi2c3, slave, reg, 1, &,read, 1, 100),

,

, , ,HAL_Delay(50),

Frank CA · ‎2018-04-27

Posted on April 27, 2018 at 23:37

To let you know, I built the example project on 2 boards (not Nucleo - my own hardware) and it works fine.

Its not clear why your call stack looks the way it does. Just a shot in the dark - in your slave code did you enable address listen mode using HAL_I2C_EnableListen_IT() ? You dont show it in your code. EDIT: correction, it is there.

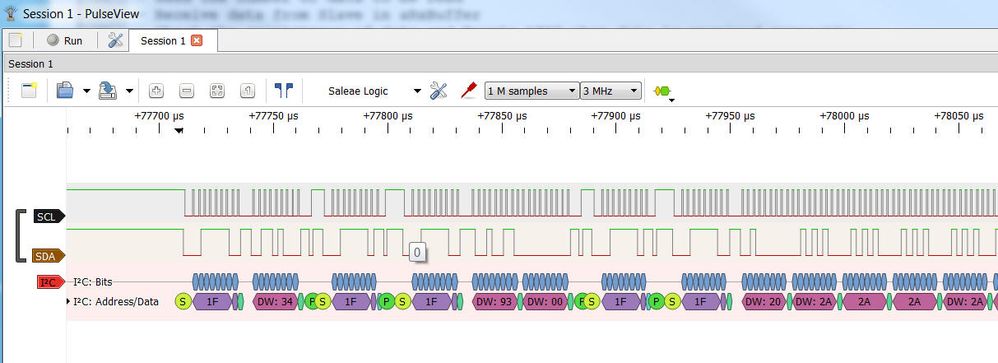

May be worth getting a logic analyzer hooked onto the bus. Below a trace of some of the master -> slave transmit data from the example.

Frank CA · ‎2018-04-28

Posted on April 28, 2018 at 21:55

Look also at

https://github.com/cnoviello/mastering-stm32/blob/master/nucleo-f103RB/src/ch14/main-ex2.c

, it is in line with what you are trying to do.

Chuev.Vladimir · ‎2018-10-24

In line 88, data is passed to the master.

But what if the master will write? How to find out in advance will be written or read the second byte?
