Resolved! NUCLEO-C5A3ZG STM32C5 QSPI Display Bring up Project
This project tests the STM32C5's XSPI capability to drive QSPI display using the NUCLEO-C5A3ZG M.2/SerialMem connector. GitHub - stm32-hotspot/STM32C5-M2-Serial-Mem-QSPI-Display · GitHub
STM32 MCUs Boards and hardware tools
Ask questions and find answers on STM32 hardware set-ups, including schematic-related challenges, debugging probes, power configurations, and more.
Forum Posts
nucleo pd output 24V@3A
Can I safely get that power out of any of the nucleo PD boards with a usb3 pd input? Can I get any higher current or voltage? Output is 2 pin barrel connector. Target application is fully documented here. Thanks so much in advance Joe
Need Recommendation for Replacing 240x240 Display with 800x480 on STM32F413ZH Discovery Kit
Hello STM32 Community,I have the STM32F413ZH Discovery Kit, which comes with a 240x240 TFT display. I need to replace this display with a larger 800x480 TFT display. Can anyone suggest suitable displays that are compatible with this board?Thank you!
Error during debugging in NUCLEO-H743ZI board
Hello,I am using the STM32H743ZI Nucleo board.Suddenly The Red LED (Over current LED) is glowing in my Microcontroller. I have checked all the connections properly, and there is no short circuit.Because of this I can't able to load the Program in it ...

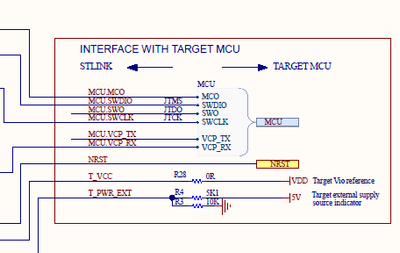

Leakage current potentially via STLINK pins on demo board?
I am trying to make some very low current (<1uA) power measurements on the MCU on the STM32U083C-DK demo board.I see that jumper `JP7` is provided specifically for this purpose, but I am concerned that connections from the MCU to the STLINK interface...

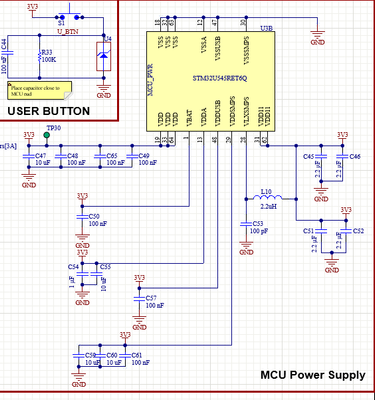

review of Power supply of my stm32u5 schematic
Dear, I want to use SMPS of STM32 using this schematic Can you review this if i'm correct ? Thank you
break implementation - ADC on stm32c031c6 using CubeMX
please provide me the information about how to implement break for adc input, give me one example for break implementation in stm32c031c6 with mxcube configuration
Resolved! HX711 LOAD CELL on STM32G0B1RCT6
HI,i am trying to interface the HX711 Load Cell to STM32G0B1RCT6 Microcontroller.i using internal clock source(HCLK = 16MHz) and its reading good.Load Cell Value: 8220309Load Cell Value: 8221048Load Cell Value: 8221228Load Cell Value: 8221368Load Ce...
STLINK-V3PWR windows 8 drivers
Hello,I replaced the ST-LINKV2 by the STLINK-V3PWR and I use Windows 8. The drivers are not found:Do you have drivers for Windows8 please?Best regardsMich

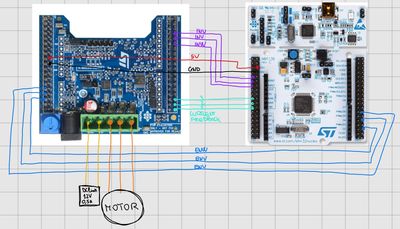

Connecting Nucleo-Driver with STM32F3
I need to connect the NUCLEO-IHM16M1 driver with STM32F308 but due to smd resistors soldered on top of the driver NOT compatible with my STM (and not having the right tools to desolder them) so I can't attach/put/stick the driver on top of the ST (as...
Can not detect USB Nucleo F411RE
Spoiler My ST-Link was working perfectly at first. I could connect it to USB, upload code, and toggle the LED using a button. However, after upgrading the ST-Link firmware, my computer can't detect it via USB anymore. Any suggestions on how to fix t...
