What's the meaning of pull-up and pull-down in ALED6001's Rpwmo setting?

TSU.11
Associate II

‎2021-01-20 6:54 PM

Hello

  1. What's the meaning of pull-up and pull-down in ALED6001's Rgate & Rpwmo setting?
  2. Is Rgate in pull-up case case in the ALE6001's Demo kit AN4549?
  3. Is Rpwmo in pull-down case in the ALE6001's Demo kit AN4549?
  4. Is Rgate in pull-down case case in the ST eDesignSuite?

How to distinguish?

​Thank you.

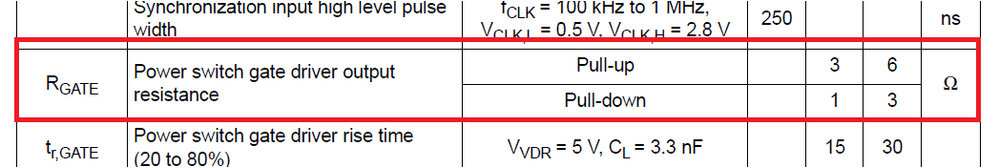

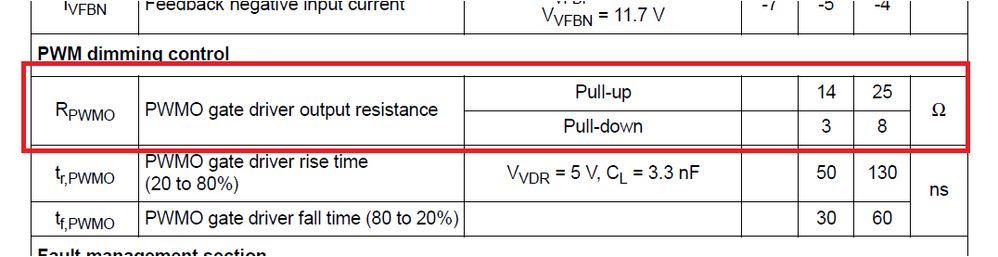

ALED6001 Datasheet

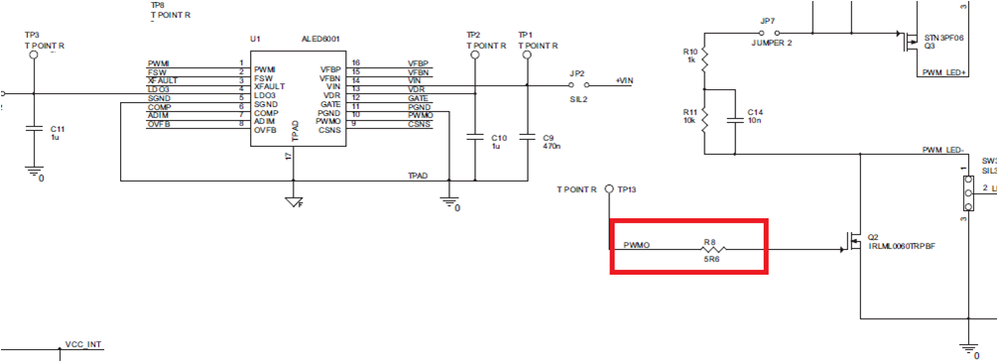

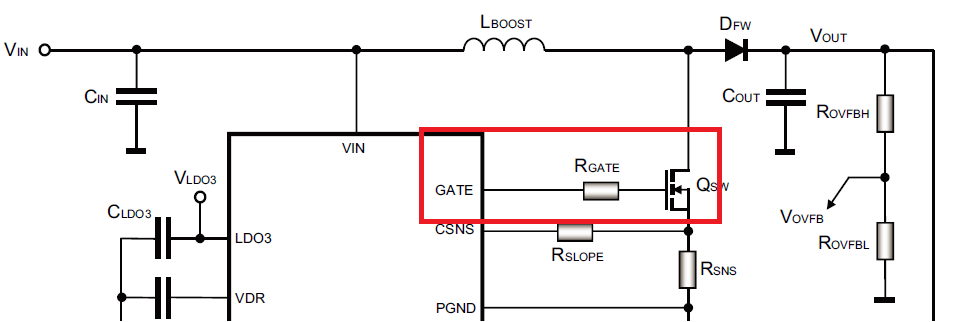

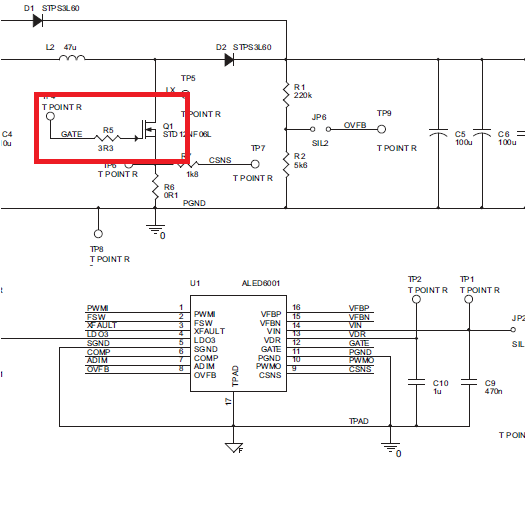

0693W000007C5bsQAC.png0693W000007C5bnQAC.png0693W000007C5bxQAC.pngDemokit AN4549

https://www.st.com/resource/en/application_note/dm00123365-singlechannel-boost-led-driver-using-the-aled6001-with-graphic-user-interface-for-quick-evaluation-stmicroelectronics.pdf

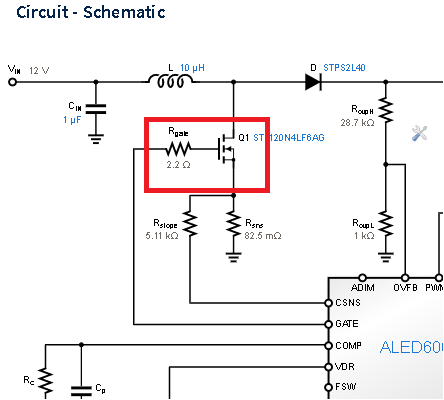

0693W000007C5doQAC.png0693W000007C5djQAC.pngST eDesignSuite
