Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.
Can the IPS2050H withstand a full short circuit on the outputs?Let's say the IPS2050H output is connected to a board power connector. What happens if:1. The connector is first short circuited and then the IPS2050H is turned on.2. The IPS2050H is alre...
Hello There, Where can I find the example code for interfacing L9305 through SPI? Please suggest some sample Code.Thanks!
Hi,I’m planning to use the EVLSTGAP3SXS-H eval board for testing at around 40 A. The MOSFETs are rated for much higher, but there are no heatsinks or clear thermal paths on the board.What do you propose for thermal dissipation at this current level? ...
I have working on STSPIN32G0B1 board for BLDC E-Bike. I have need 5V Supply for Motor Hall signal, Throttle and Pedal Asist sensor (approximately 60 to 70mA). Can I able to convert 12V from REG12V to 5V using 78l05. REG12V can able used to provide ex...

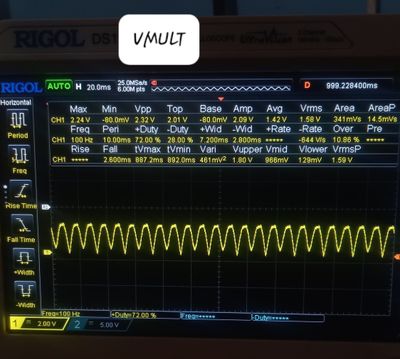

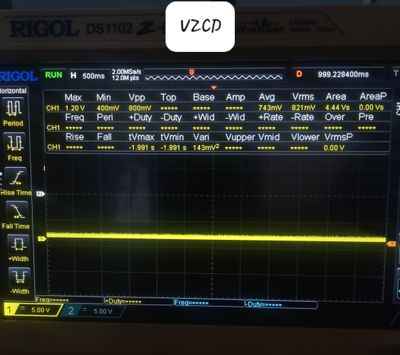

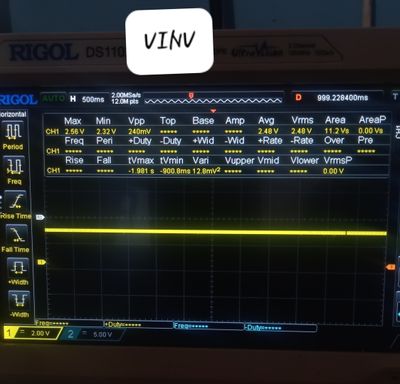

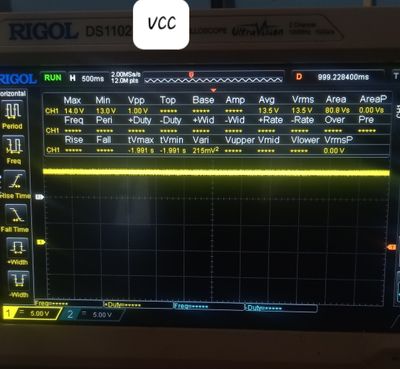

We are trying to build 30W PFC circuit using L6562 in fixed off time(FOT) mode ref AN1792 in this configuration the zcd signal is taken from gate signal but in our case ic not providing gate signal hence mosfet is not switching.attached voltage graph...
Dear ST Team, I have a question regarding the VNF1048F high-side switch controller. Can it be used to drive FETs in a back-to-back configuration? Additionally, how would this affect the Vds measurement for desaturation protection? Looking forward to ...
We designed a buck converter based on AN5380 with an input of 600Vdc and an output of 12Vdc. The device turns on at around 55Vdc, but the output keeps shutting itself off and turning on again (image1). This keeps happening as we turn up the voltage. ...

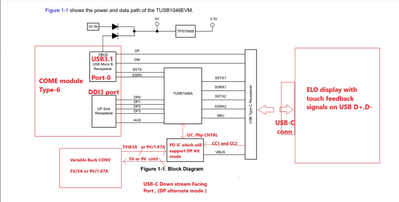

Hi I am developing new carrier board for COMe type-6 Module. Where i have a requirement of Display port to connect an external display with 5v @3A max, 9V@1.67A max. below block diagram has 1. COMe type 6 module (Host).2. Re-driver (MPN: TUSB1046A-D...
Hallo,how do I know what marking TS4061AICT-1.25 has?There is no hint in datasheet.Can you help?Thanks

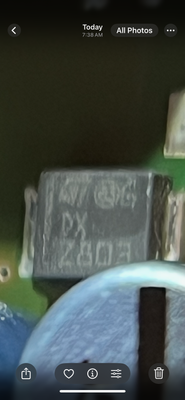

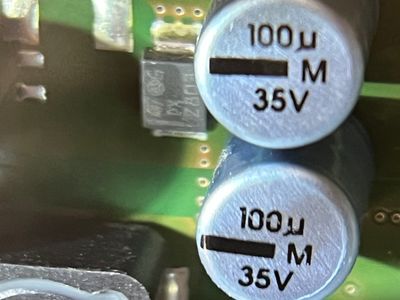

I had someone to identify the wrong diode. The diode I need identified isst e3 gdxz803thank you, in advance, for all of your help in identifying the diode!
