Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.
I am reworking a discrete driver design for a custom LED emitter device. While the driver can be changed, the custom emitter board currently cannot. It's designed for common V+ with multiple sinks, 10 groups of 21 LEDs in series. Our drive current wo...
Hello,I'm planning to use the STGAP3SXS Gate driver on SiC MOSFETS SCT040W120G3AG by ST.I want to know if there is an available Spice models for this part as I want to simulate their behaviorThank You!.

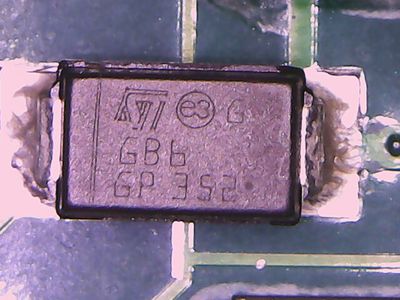

Needing the info on this diodest e3 gdegp922

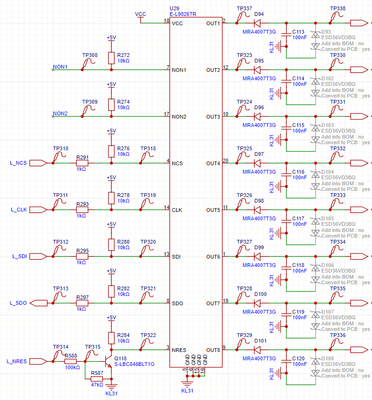

Here is my hardware design. The output with load goes high during chip reset. When I cancel the reset, the output immediately goes low before I have done any control. I turn the output on or off again with no effect and at this point the diagnostic d...
Hello.I have a problem with this IC. I can read cell voltages perfectly. but when I initiate cell balancing on selected cells, its not happening. for that I follow these steps:1- I enable cells by writing on 0X1C Register.2- I set UV threshold by wri...
Does the charger IC ever operate outside of the specified TX FREQ MAX and TX FREQ MIN limits?For example, if the limits are set to 100kHz and 148kHz and the charger is operating at either limit, would FSK cause it to change the frequency below this v...

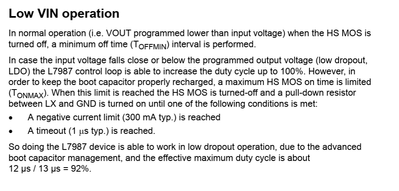

HiI am working on an application with wide VIN from 6V-60V and the target VOUT is 15V 3A max.When VIN > 16V, L7987 should fit my application. Problem is that when VIN drops below 16V, eDesignSuite reports an error so simulation is not possible. It st...
Hello ST community,We are working on a 15kW Rectifier module for EV charging application. This module contains 15kW Vienna rectifier and 12kW DC DC converter, input voltage: 3 phase 415V, output voltage: 40V-120V. For this requirement, we are explori...
Hello ST Team, Greeting from Uniglobus, is the child R&D Electronics company of Polycab India limited My self Grishma Bhatt, I am Power Electronics Design Engineer We would like to start a new product 3.3KVA Single phase non isolated solar on grid In...
