Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.
Hello Team I have a general query. Do we have any 555 timer with ASIL-B or ISO26262 compliant. I am interested in discrete level solution rather going with MCU and my aim is to have redundant control/ feedback/LIMP HOME mode embedded in the 5...
Hello,Our customer has inquired about the meaning of the last three-digit code in the marking on the L78L15ACUTR.For example, some parts are marked with "8L218" or "8L243" on the top surface.Could you kindly explain what "218" and "243" stands for?Th...

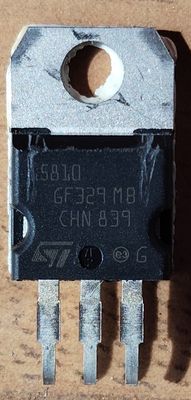

Hi, dear. Could you please help me find the datasheet for the MOSFET with part code GF329MB, as well as other compatible MOSFETs with similar specifications? Thank you in advance for your help! Hi, dear. Could you please help me find the datasheet ...
Hello,Does anyone have any firmware for interfacing with the L9780 wideband controller. I am planning on using a LSU 4.9 but any sensor configuration would be useful.Any information is appreciated. Thanks,
Hello I’m currently working on a design that uses the L9338 Quad Low-Side Driver and would like to perform circuit simulations in LT spice (or any compatible simulator). Could you please provide the SPICE model for the L9338?If it’s not available pub...
Hello, Is there a way to set up the Sink PDO to take in a variable voltage? I would like to set up PDO2 5-20V 3AmpsPDO3 5-20V 5Amps My plan is to use the Power Ok GPIOs to determine how much current I have and do some down stream current limiting. ...
Last week, I have been testing SRK1000A in EVLSRK1000A-PF, in an application with 250 kHz fixed frequency flyback PWM with primary side control.1. I struggled around the gate no longer driven in CCM-mode, and even in DCM upon more than moderate load....
Hello,I am trying to send first command from the MCU (s32k312 -NXP).I am able to send but I am getting SPI response likeAnd afterwards, no matter which SPI commands send, it always sends same response from the chip i.e. 0x610000As per the Datasheet, ...
Hi everyone,Good day!I'm currently working on modifying the Responder ID using CAN FD communication.I initially had a firmware running on an MCU that was capable of modifying the Responder ID. My goal now is to analyze the CAN FD communication from t...
Hi ST,I am using the STW3N170 in a linear application (constant current source) where the voltage can be 1500V and current as high as 16mA - total 24W.Can you please share the DC Curve of the SOA, please include in the graph the Thermal Instability d...
