Evaluation board for MMstr71xF minimodule with ARM microcontroller

okulicz · ‎2008-03-08

Posted on March 08, 2008 at 17:28

okulicz · ‎2008-03-08

Posted on March 08, 2008 at 17:28

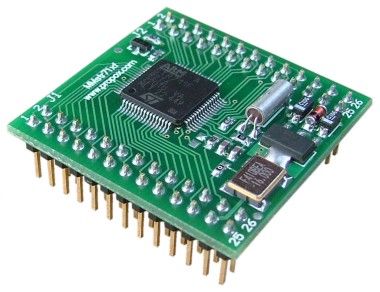

* Socket for the MMstr71xF module

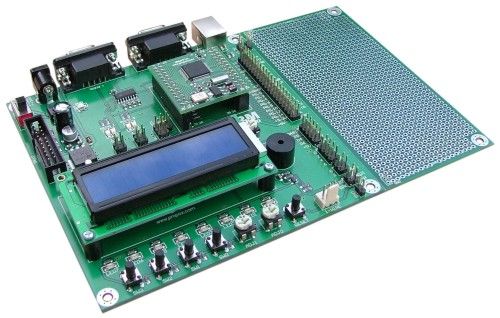

* Connector with all terminals of the MMstr71xF module

* Connectors of all peripherals accessible on board

* Power supply

* Power switch

* USB connector

* Two RS232 ports

* 1-Wire connector

* JTAG connector for in system programming and debugging

* SD/MMC card connector

* connector for 2x16 LCD display

* 8 LED diodes

* 4 push-buttons

* 2 potentiometers

* Buzzer

* Prototype design area
