PWM Duty cycles

subbaraon · ‎2010-04-15

Posted on April 15, 2010 at 15:58

PWM Duty cycles

#stm32

smart2 · ‎2011-05-17

Posted on May 17, 2011 at 13:47

You can change this value (TIM_OCInitStructure.TIM_Pulse = CCR_i) on different channels. This defines duty cycle i.e ON time

subbaraon · ‎2011-05-17

Posted on May 17, 2011 at 13:47

Thanx for ur response.

That's fine and I did.

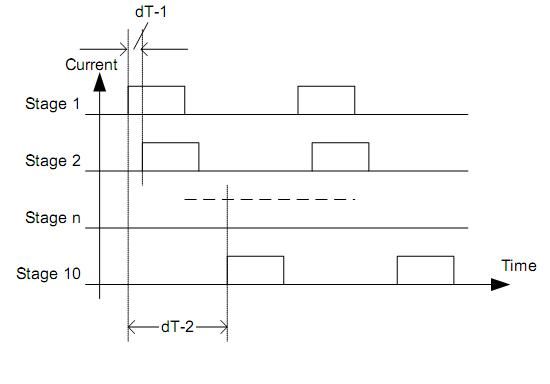

But, my requirement is delay between the ON TIME pulses of PWM waveforms with same duty cycle.

Observe the attached picture for requiement.
