Why does my BLDC motor stop during acceleration?

Dror Laor · ‎2017-03-30

Posted on March 30, 2017 at 10:12

I'm currently evaluating STSPIN32F0 as a solution for BLDC polygon motor control & drive.

My EVB is STEVAL-SPIN3201.

The application is:

38V nominal
8A max @ acceleration

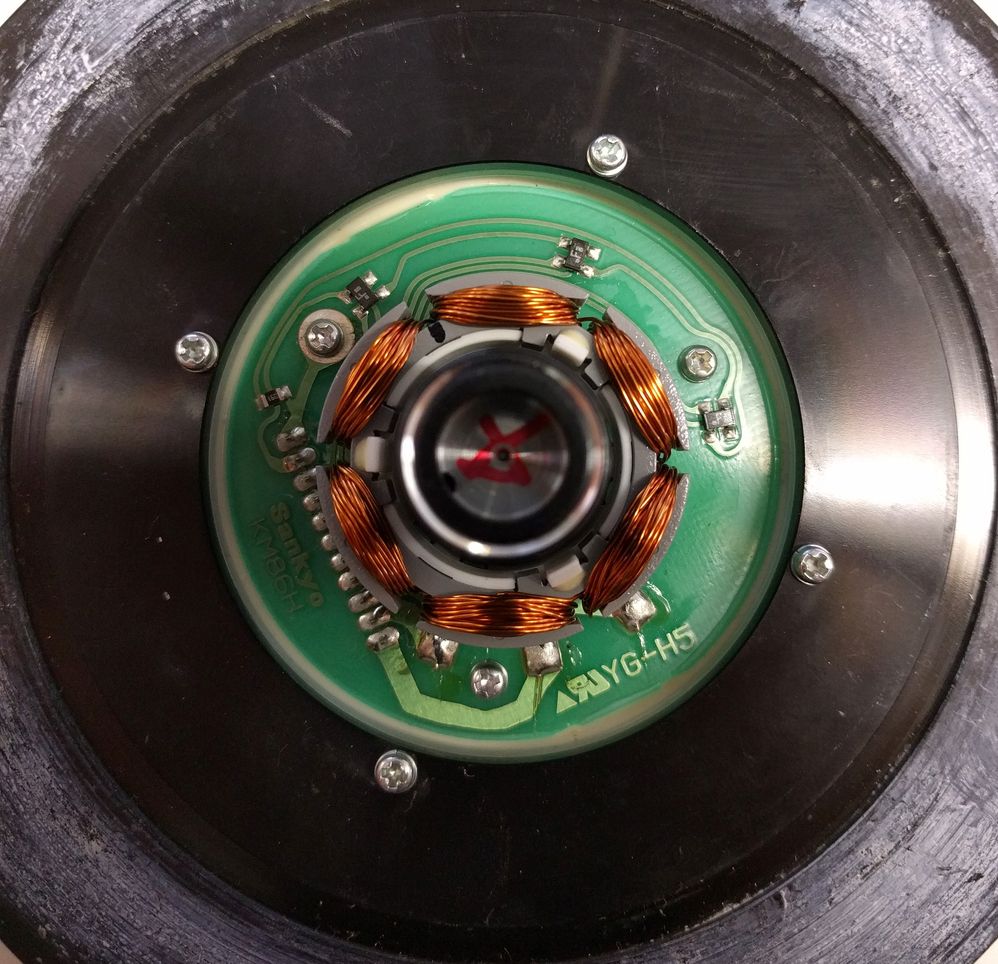

60 deg displaced hall sensors
2 pole pairs

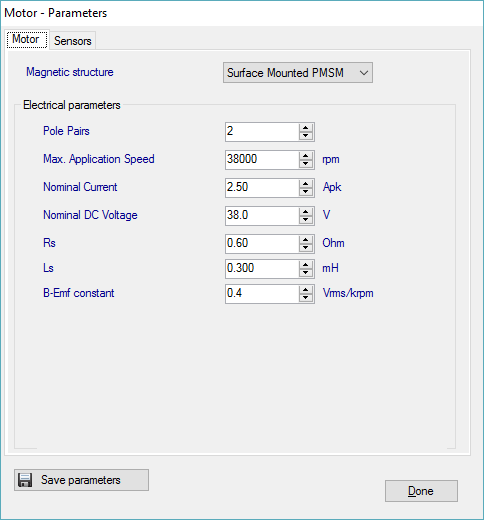

My Motor configuration is

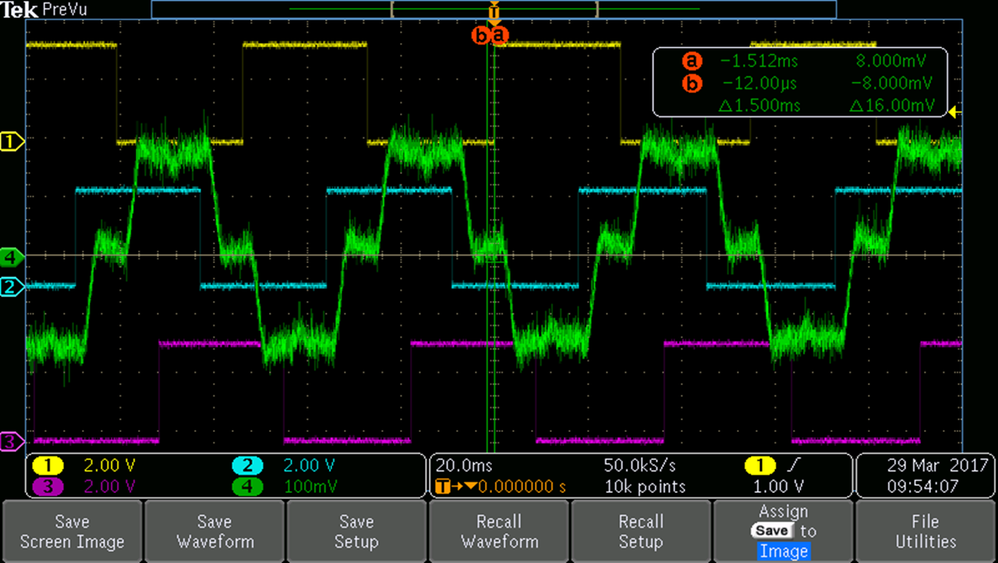

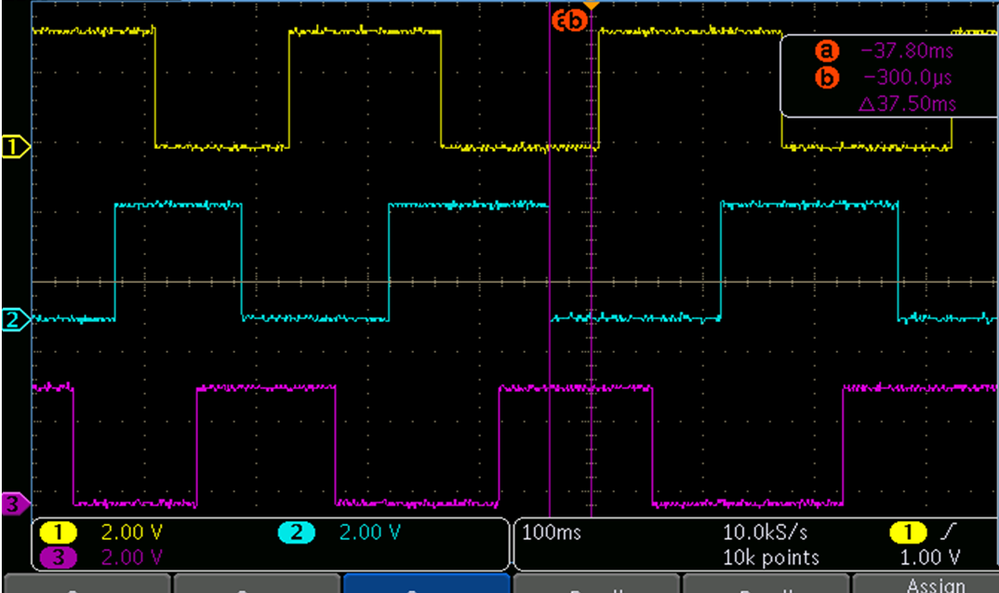

When probing for hall-sensors feedback I get:

Sensors 1-3 correspond to channels 1-3

respectively.

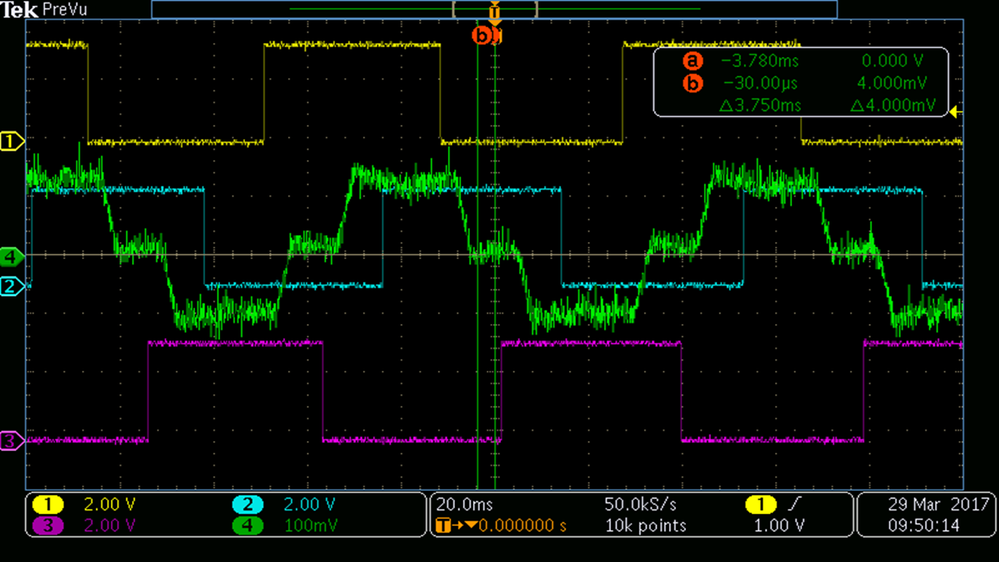

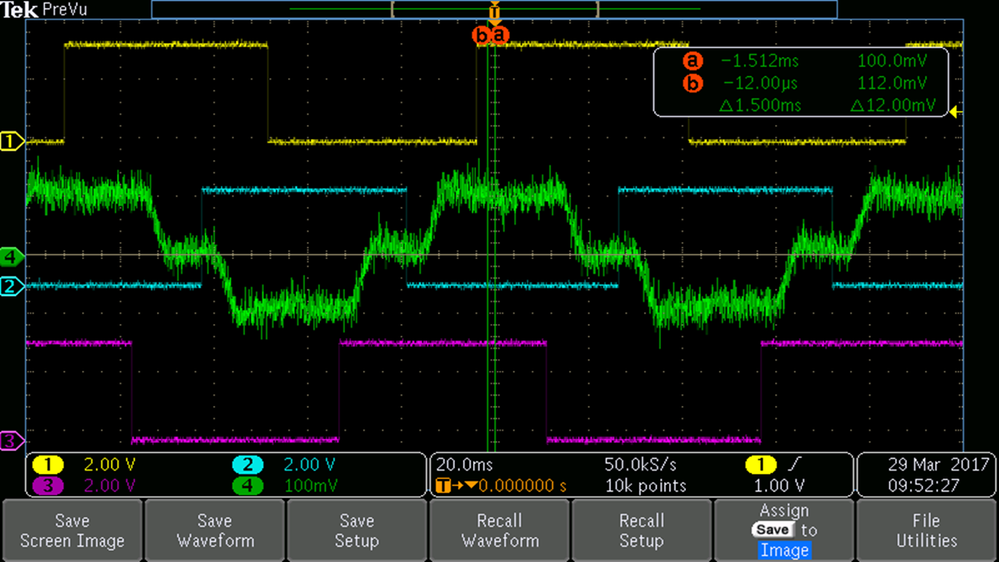

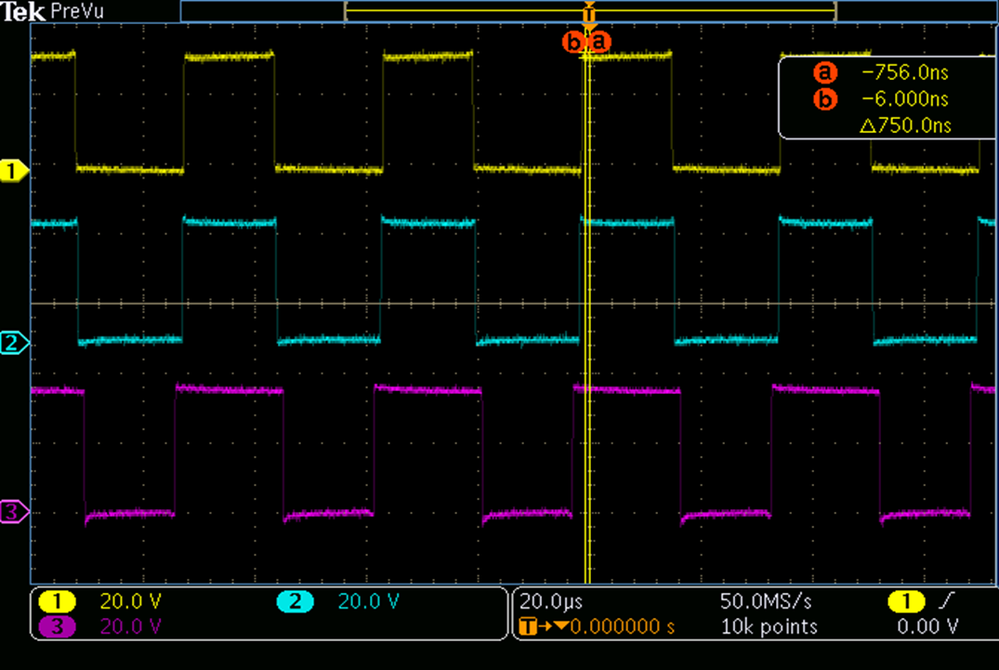

b-emf was also measured:

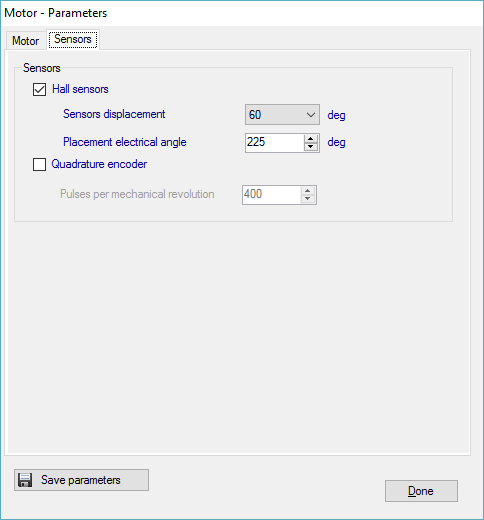

My sensor configuration is

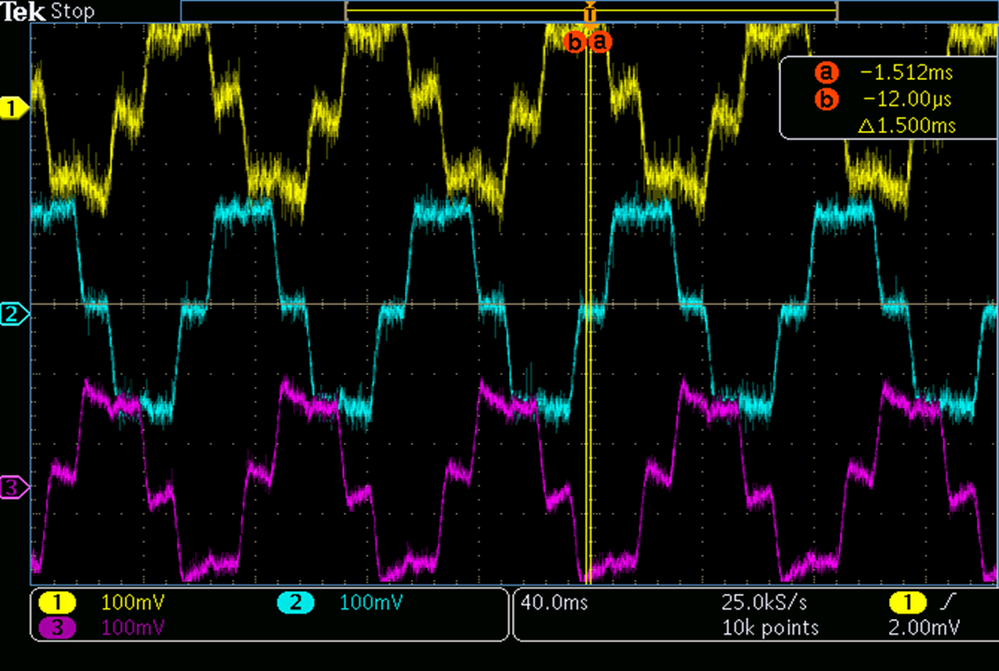

When measuring b-emf on UVW terminals I get

UVW correspond to channels 1-3 respectively.

When trying to speed ramp to 15,000 in 15,000 ms I get the following UVW drives:

Motor starts spining for approx. 10s and then stops.

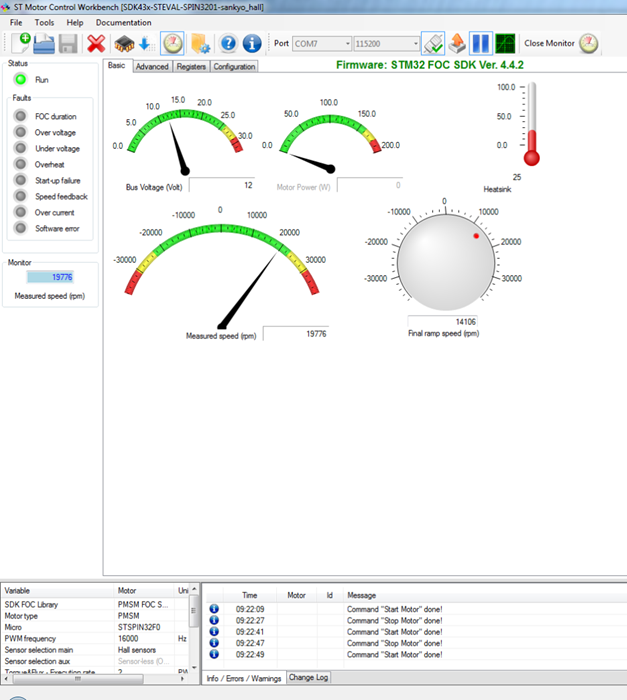

MC Workbench displays the flowing data after motor is stopped:

My SystemDriveParams folder & MC Workbench project is attached as a .zip file.

No changes have been made in the source files except commenting out &sharpdefine EXAMPLE_POTENTIOMETER and &sharpdefine FIRMWARE_VERS ''STM32 FOC SDK\0Ver.4.4.2''

Any Ideas?

Thanks,

Dror

#polygon #stspin32f0 #bldc #hall-sensors

Enrico Poli · ‎2017-04-07

Posted on April 07, 2017 at 14:03

Hello Dror,

In your configuration file the PWM frequency is set to 16k and the execution rate is 2, as a consequence the 'bandwidth' of the FOC algorithm is 16k/2 --> 8 kHz. Not so fast.

Moreover you are using a motor with low inductance value, so and high PWM frequency is recommended in order to keep the current under control.

Please, try the attached setup with fPWM = 24k.
