Resolved! NUCLEO-C5A3ZG STM32C5 QSPI Display Bring up Project
This project tests the STM32C5's XSPI capability to drive QSPI display using the NUCLEO-C5A3ZG M.2/SerialMem connector. GitHub - stm32-hotspot/STM32C5-M2-Serial-Mem-QSPI-Display · GitHub
STM32 MCUs Boards and hardware tools
Ask questions and find answers on STM32 hardware set-ups, including schematic-related challenges, debugging probes, power configurations, and more.
Forum Posts
ST-LINK programming Needs to Hide Sensitive Data
Using ST-LINK we need to program a device but the data which needs to be programmed is highly sensitive so the CLI cannot be used. Are there any suggestions how to proceed with this programming other than writing our own functions? Are there any modu...

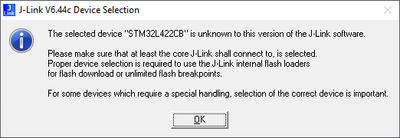

can not select version of J-link for debuging
Hello, I tried STM32CubeIDE v 1.0.0 and 1.02 but I think the somethink important doesn't work with a STM32L422CB and maybe with more new MCU. It's old version of J-Link. I can not set new or oldest version J-link in debug configuration. And also ST-l...

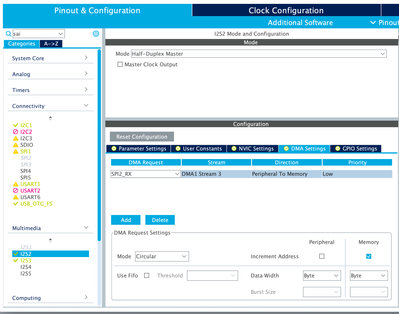

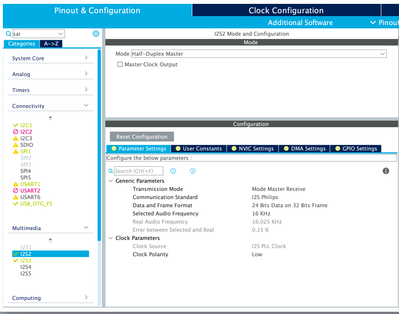

Resolved! Question about interfacing 4 I2S microphones with STM32F4
Hi I am designing a PCB for sampling 4 audio channels from 4 I2S MEMs microphone and doing some audio processing on it. My MCU STM32F407 has 5 I2S peripherals and I plan to use I2S2 and I2S3 for each pair of microphones. The configuration of each I2S...
Resolved! How to Program a STM32F (Blue Pill) with Arduino and STM Cores 1.7.0
I'm attempting to program a Blue Pill board using the Arduino IDE and an FTDI232 board.I am using the STM Cores board library V1.7.0I receive an error: " STM32_Programmer_CLI.exe not found. "I downloaded the "en.stm32cubeprog.zip" However it looks...
Distributors and availability of STLINK-V3MODS module
Hi, i'm interesting in STLINK-V3MODS but i can't find any distributor on the web. Is this module available? Someon kwons if STLINK-V3MINI has the flat cable connector soldered?
Hi, does STM32CubeIDE support the ULINKpro debugger?
Currently using STM32CubeIDE version 1.1.0Cannot see ULINKpro in the dropdown list within the debugger configuration tab.It has ST-LINK (ST-LINK GDB Server), Segger Jlink, ST-LINK (OpenOCD)uProcessor targeted is STM32F407
STM32H753VIT6: Hardware design guide / minimal recommended connections?
Where is a hardware design guide / minimal recommended connections for STM32H753VIT6?I am new to ST MCUs but ST's competitors generally have a chapter in the datasheet or an application note on this subject.Thank you
STLINK-V3SET not found by texane st-util (under debian 9)
Hi,I just bought a stlinkv-3set programmer / debugger.I currently use Eclipse IDE together with texane / st-link and openocd.I've always worked with the discovery boards (F051 and F746G) without any problems. They use the stlinkV2 or V2.1 protocol an...
USB dead without obvious reason
Hello,I have problems with custom designed board. After soldering everything(w/o IC1,IC3) I flashed my firmware. USB device completely unrecognized.I have soldered 1k5 resistor on 3V3 and D+. After connecting to computer I was able to see serial outp...
Error in UM2408 on LD1 connection
There is an error in UM2408 regarding the connections for LD1.In section "6.6 LEDs", it currently reads:User LD1: a green user LED is connected to the STM32H7 I/O PB0 (SB39 ON and SB47OFF) or PA5 (SB65 ON and SB54 OFF) corresponding to the ST Zio D13...
