Bug in EVAL6480H-DISC document

val_ltd
Associate II

‎2016-01-18 4:21 AM

Posted on January 18, 2016 at 13:21

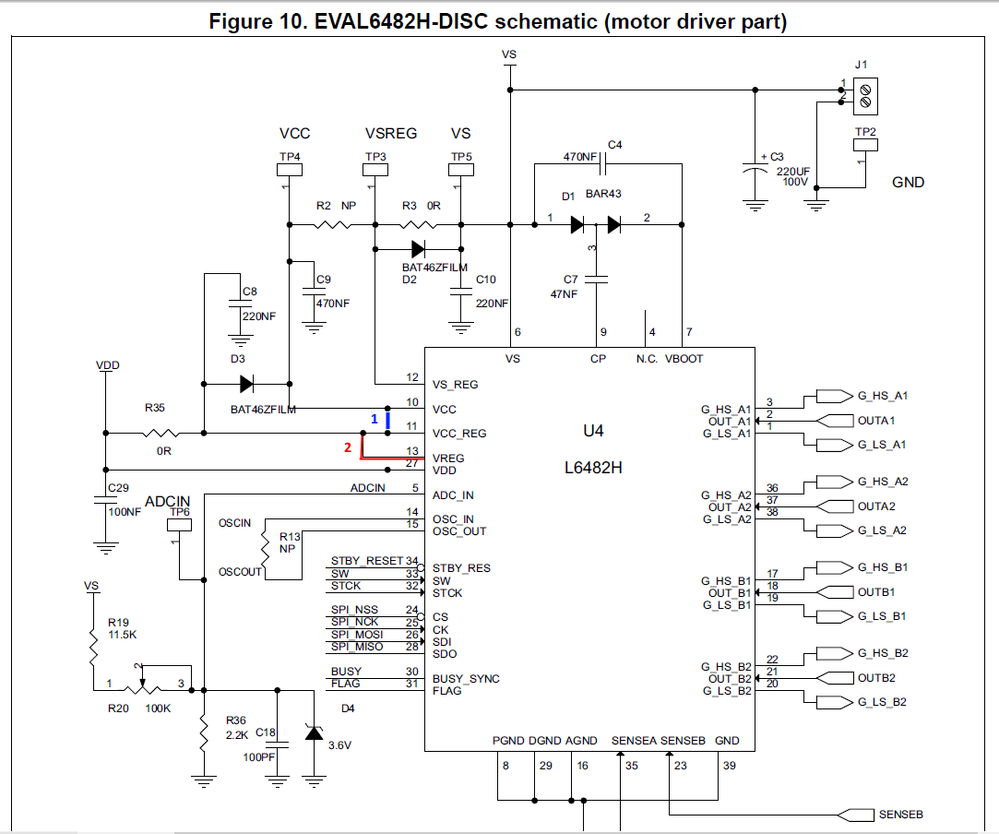

I think there is a mistake in the scheme:

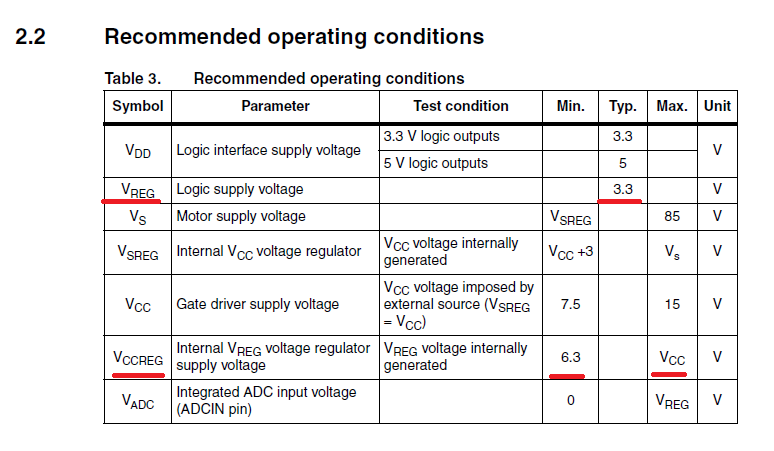

Checking data sheet (and a board built by myself), the red line (2) is wrong, and it is necessary the blue line (1).

I have destroyed 3 L6482 chips before to find out what was happening.

Now, who pays my three L6482H chips...?



Labels:
0 Kudos
This discussion is locked. Please start a new topic to ask your question.
1 REPLY 1
Jutt
Associate II

‎2016-03-19 12:57 PM

Posted on March 19, 2016 at 20:57

i am also working on L6480 Stepper motor Driver.

i also follow the diagram from the eve board.

so now i am getting confuse.do i need to follow your diagram or orginal means eve board diagram.

i hope St support will give us some reason of this issue.
