Discuss power management solutions. Ask questions and find answers on voltage configurations, short circuit protection, and programming.
Hi, We are currently using the parts listed below and would like to confirm if they are reflow compatible. We plan to use a paste-in-hole (pin-in-paste) process for these through-hole components during SMT assembly. Could you please advise if the fol...

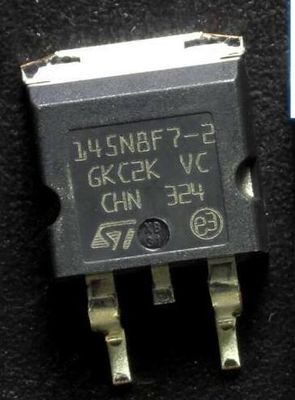

Hi Engineer， Based on the data sheet, the marking of STH145N8F7-2AG should be "145N8F7 ", but the parts I purchased were with marking of "145N8F7-2". Could you help suggest whether I purchased correct parts? Thanks, Haddy
Hello,I am currently working with the STEVAL-L99615C evaluation kit and the Nucleo G071RB microcontroller board. My goal is to set up a LabVIEW program that can:1. Adjust the output voltages of power supplies to simulate real battery cells.2. Read da...
My name is Jeongsoo Lee. We are using the L9961 (BMS IC) and have configured the circuit using the L99615C development board to establish a basic framework. However, our battery solution requires a 3-series configuration. The datasheet and developmen...
Hello,is it possible to cascade multible STPM33 Chips? That means SPTM33 + Crystal as master -> two STPM33 CLKIN-> Last CLKOUT -> two STPM33 CLKIN
Hello everyone,I am designing a USB-C Sink-only application (5V/3A) using a standard STM32 MCU. My power architecture is as follows:Input: USB-C Connector (VBUS, CC1, CC2).Protection: TCPP01-M12 controlling an external N-channel MOSFET on the high...
Cross to Diodes Inc PN: SDM40E20LC-7 with long life cycle for new design.
Hi,We are looking for recommendations on a suitable topology and charge controller for charging a LiFePO₄ battery with the following requirements:Input voltage: 9–36 VDCOutput voltage: 10–36 VDCOutput current: up to 80 AWe understand that a single IC...
Hello, We are looking for suitable drivers for L9396. Got only the Datasheet & a WSS Operation document. Can you help with the SPI Driver ? Regards, Prakash B J
