We've purchase a batch of STL140N6F7 and got 2labels: there are STL140N6F7$F6 with PBT 260C and STL140N6F7$F9 with PBT 225C ,are these 2types in Mass Production? would you help to check what is the difference ? thanks.
Please advise difference between L6206PD and L6206PD013?
Hello, I am using L6205D013TR on our PWB.I would like to use L6205D instead of L6205D013TR, but I could not find the difference between L6205D and L6205D013TR on their Data sheets. Please tell me the meaning of "013TR". It's just a difference of the ...
Hi, we are using the STM6600CS25DM6F in one of our new products. It is powered by the output of a battery charger. This charger can draw up to 500mA from a USB port. If the system requires more current, the charger switches to the supplement mode, wh...

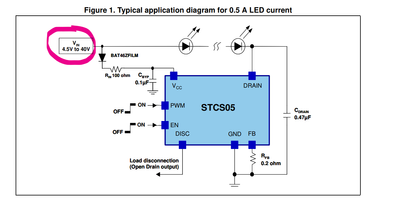

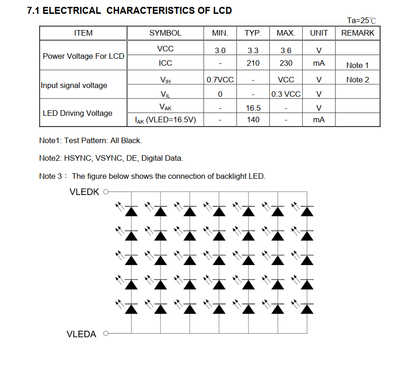

Good morning, I am thinking to drive a LCD backlight with ic STCS05 and to control it with enable and pwm signal from a cpu. Led driving voltage of leds matrix of my LCD is 16.5V with 140 mA typical current (see picture attached). Do I have to supply...

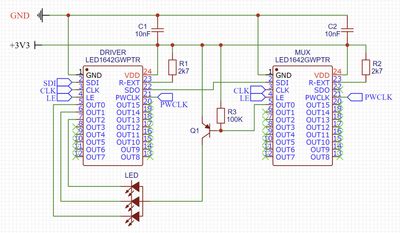

ContextI'm working on building an LED Cube for no other reason but my own self learning. My intention is to use 12 LED1642W to support a 8x8 grid of 3 channel RGB LEDs, with a 13th LED1642W to multiplex the cube's layers. As a minimum viable model, I...
STNS01 has a precharge timer of 30 mins. When this timer times out, does this indicate a faulty lithium ion cell?I understand that in the first place, lithium ion cells shouldn't be discharged to below cutoff to prevent damage (2.6-3.0v for most Li-i...
There is a bug in the db3 diac model found in https://www.st.com/en/thyristors-scr-and-ac-switches/db3.html#11line 79R_R1 N02098 TRG {1.462*Tr} ; <---------------------- bug fix for 1.462*{Tr}
