Device information for STM32H5 MCU on stm32flash0.7

[nama]

Hi all,
I am using an STM32H563 (device ID 0x484).
When attempting to update the MCU firmware using stm32flash 0.7, I am encountering the following error.

=============
stm32flash 0.7

http://stm32flash.sourceforge.net/

Interface serial_posix: Baud Rate : 115200, Data Bit : 8, Parity : E, Stop Bit : 1
GET returns unknown commands (0x50)
Unknown/unsupported device (Device ID: 0x484)

I would like to know what the 0x50 command is and what content should be added to devices[] for the STM32H.The following is what I found through a search, but I don't know if it's accurate.

=============
const stm32_dev_t devices[] = {
/* ID "name" SRAM-address-range FLASH-address-range PPS PSize Option-byte-addr-range System-mem-addr-range Flags */
/* H5 */
/* {0x474, "STM32H503xx" , 0x20004000, 0x20008000, x , x , x, x, , x , x , 0x0BF87000, 0x0BF90000, x}, */
/* {0x484, "STM32H563xx/573xx , 0x20000000, 0x200A0000, x , x , x, x, , x , x , 0x0BF97000, 0x0BFA0000, x}, */
/* {0x478, "STM32H523xx/33xxx , 0x20004000, 0x20044000, x , x , x, x, , x , x , 0x0BF97000, 0x0BFA0000, x}, */

thanks, nama

[Issamos]

Hello @nama

I suggest you to try using the STM32CubeProgrammer.

Best Regards.

II

[mƎALLEm · Accepted solution]

Hello,

This is not a ST solution. You need to contact its developper.

The log says: "Unknown/unsupported device (Device ID: 0x484)".

More likely that "stm32flash 0.7" doesn't support the device yet. So please use STM32CubeProgrammer instead.

[nama]

Hello,

The solution we are developing includes a HOST AP(Linux OS) connected to an STM32H MCU via serial.
This HOST AP must perform MCU upgrade via serial communication.
I was unable to find the open-source version of STM32CubeProgrammer for Linux.
Does ST provide the source code?

thanks for your quickly response.

[mƎALLEm]

Hello,

Unfortunately STM32CubeProgrammer tool is not an open source solution.

[nama]

Hello, mƎALLEm

I would first like to know the exact values for the SRAM address range, FLASH address range, PPS, PSize, Option byte address range, System memory address range, and Flags items.

I expect you to inform me about this.

thanks,

[nama]

Dear all,

As you mentioned, using STM32CubeProgrammer would be ideal, but we need to control the STM32H MCU by integrating a flash programmer into the host.
Therefore, despite some potential issues, I believe we should use “stm32flash 0.7”.

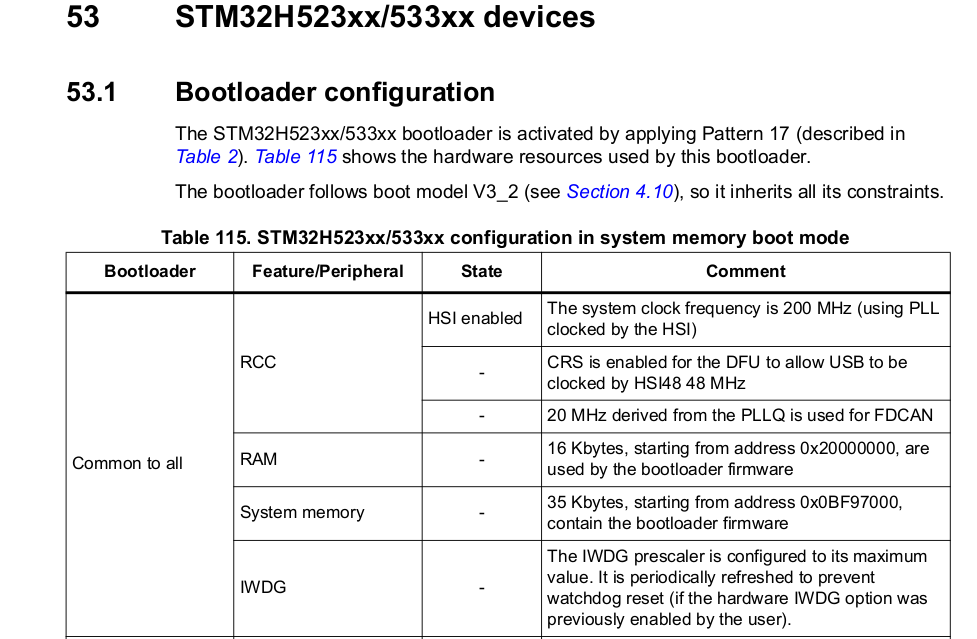

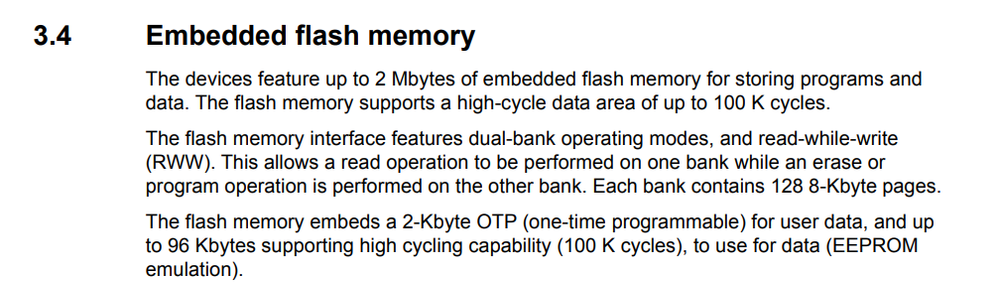

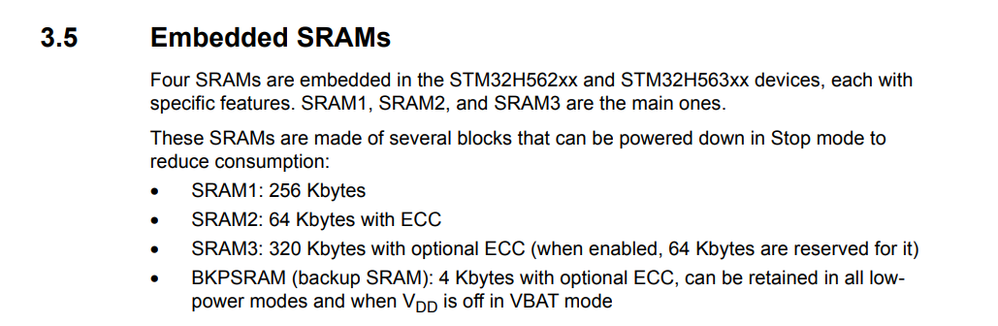

Anyway, I have compiled the device information based on the contents of the following capture file and I successfully performed flash writing and verification.
However, for some reason, the STM32H MCU does not boot.
I suspect the settings below might be incorrect.

I need advice on whether these settings are correct.

==========

SRAM-address-range : 0x20000000 ~ 0x20040000

FLASH-address-range : 0x08000000 ~ 0x08200000

PPS : 1

PSize : p_8k

Option-byte-addr-range : 0   // I couldn't find this information.

System-mem-addr-range Flags : 0x0BF97000 ~ 0x0BFA0000

Flags : 0

[nama]

Dear all,

The STM32H MCU has just successfully booted up.
Thank you all for your help.
