How to Set PWM in CubeMx2/HA2?

tt2098 · ‎2026-04-22

Question split from this thread.

Hi ,

Can you also provide some info on how to set pwm through timer channels ?

mƎALLEm · ‎2026-04-22

Hello again,

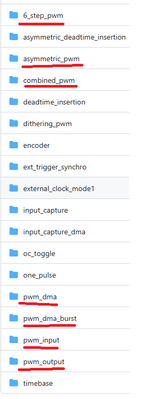

I can propose to look at the examples provided in CubeC5 package:

https://github.com/STMicroelectronics/STM32CubeC5/tree/main/examples/hal/tim

I don't think there is a step by step guide treating PWM for the moment. This knowledge base is about How to use TIM with STM32CubeMX2 but unfortunately treats the case of a basic time base.

To give better visibility on the answered topics, please click on "Accept as Solution" on the reply which solved your issue or answered your question.

View solution in original post
