How to use SVG in touchGFX

[Junde]

Hi there,

In my touchGFX project, I import an SVG file.

I can compile and simulate the UI page using TouchGFX Designer, which works as expected.

However, after I finished the design in TouchGFX Designer and tried to compiler the project by MDK-ARM, the following error was present:

(When I delete the SVG object in TouchGFX Designer, everything works well again.)

I don't know what this means, how do I resolve it?

Thanks for your help!

[ferro · Accepted solution]

Hi @Junde

Try this

https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/undefined-reference-to-touchgfx-vectorrenderer-getinstance-after/td-p/687277

[GaetanGodart]

Hello @Junde ,

Could you check if it works when compiling and flashing from TouchGFX Designer?

Maybe there is a missing include file or library path in your IAR project?

Regards,

[Junde]

@ferro  Thank you

this resolved my error!

[Junde]

@GaetanGodart thanks for your reply

It can work well with the touchGFX Designer in simulation mode.

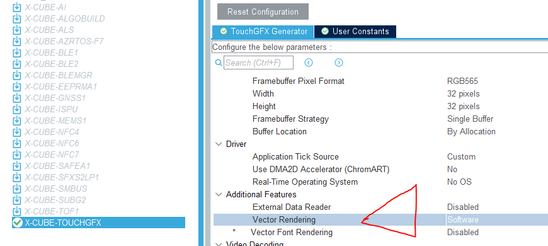

My question can be resolved by enabling "Vector Rendering" in cubeMx.
