how would I fanout a WLCSP90 package in altium or kiCad? What would the constrants be? This is package for a STM32U585xx base processor.

NDroo.1
Associate

‎2023-06-09 12:38 PM


Labels:
0 Kudos
This discussion is locked. Please start a new topic to ask your question.
1 REPLY 1
STOne-32
ST Employee

‎2023-08-26 4:11 AM

Dear @NDroo.1 ,

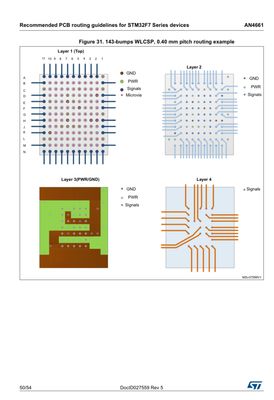

here an example for a WLCSP143 0.4 pitch on 4 layers PCB.

Hope it helps ,

STOne-32


0 Kudos
