Posted on July 29, 2017 at 04:07
The pin 1,2, and 3 should be gate, drain, and source respectively. I connected a circuit like this, and got Vd = 12V. The Vd is supposed to be something near 0V. Is there anything wrong with the model?
Hello,
I'm trying to simulate STP55NF06. You can download its model here:
/external-link.jspa?url=http%3A%2F%2Fwww.st.com%2Fen%2Fpower-transistors%2Fstp55nf06.html

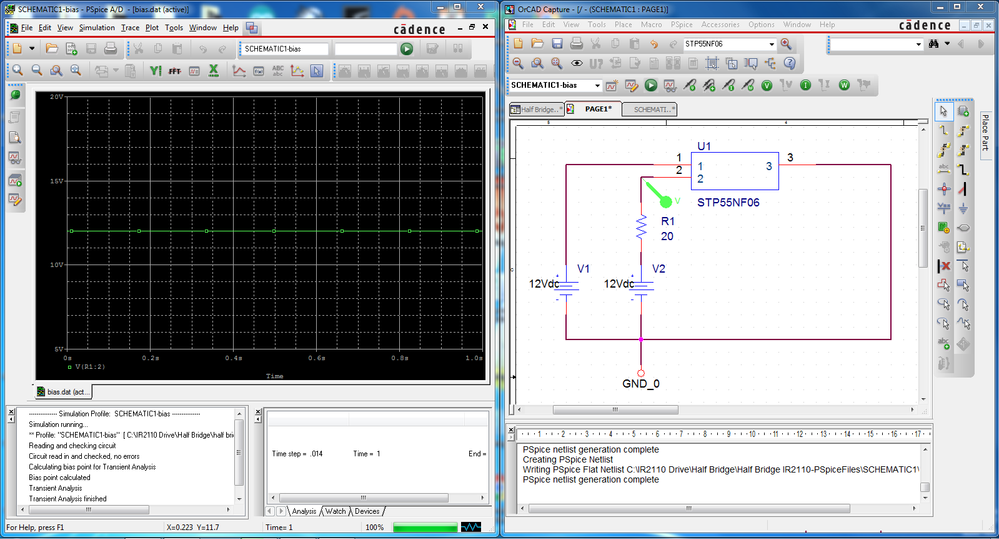

.The pin 1,2, and 3 should be gate, drain, and source respectively. I connected a circuit like this, and got Vd = 12V. The Vd is supposed to be something near 0V. Is there anything wrong with the model?Thank You
#mosfet
