Others: hardware and software

Hi, I have to read a MCU STA2062A by jtag mode, I think it's an ARM926 in LFBGA format. I ask if someone have jtag pinout to read this MCU. Thank you

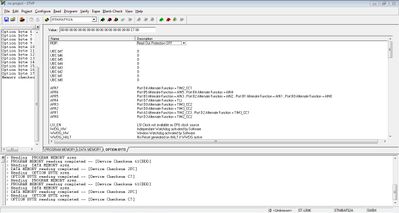

Need to Program STM8L151C6 using USART bootloader application. Configured ROP OFF & BL OPT BYTES to 55 AA using STVP. But BL not working. Pls Help in this.

Boot Loader Option Bytes SettingsOption byte 0: AAOption byte 1: 00Option byte 2: 00Option byte 3: 00Option byte 4: 00Option byte 5: 55Option byte 6: AAMemory checksum: 0x1A9

how to go about designing an LCL Filter for a grid tie inverter?

Hai,i am designing a grid tie inverter capacble of driving loads upto 1650w.I need to design an LCL filter for my grid tie section.i am planning to use STGW20NC60VD igbts for my full bridge section.How should i go ablout designing the emi filter for ...

In case of stm8s, how to configure SPI CRC in slave mode because in my project I am slave and taking data only.

STM8L151C6 USART Bootloader is not working?

Hi, I am using STM8L151C6 chip for my development. I would like to program my application through USART boot loader option. I configured Read Out Protection OFF and BL option bytes to 55 AA through ST Visual programmer. When I am testing wit...

How to interface lcd to stm8s103fp3

I am trying for interfacing lcd to stm8s103fp3 in 4 bit lcd mode.please someone suggest how should I do.​

What is means "read out protection off"? means is mcu is loacked to read? stm8af52a

What kind of development tools are for L9805E??

Posted on March 01, 2017 at 11:08Compiler, debugger emulator.Is it standard ST7 tool?What programming adapter?#l9805e

STR751 part markings. I can see a question on these items from 2009, but cannot see the answer on the forums. I want to see why the parts are marked 5CTMV3 and the label shows /MIN after the ST part number

Are these STR751FR0T6/MIN the same as STR751FR0T6 and why are they marked 5CTMV3
